Fargo DTC1250e - Page 110

DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 110
Step
Procedure
6

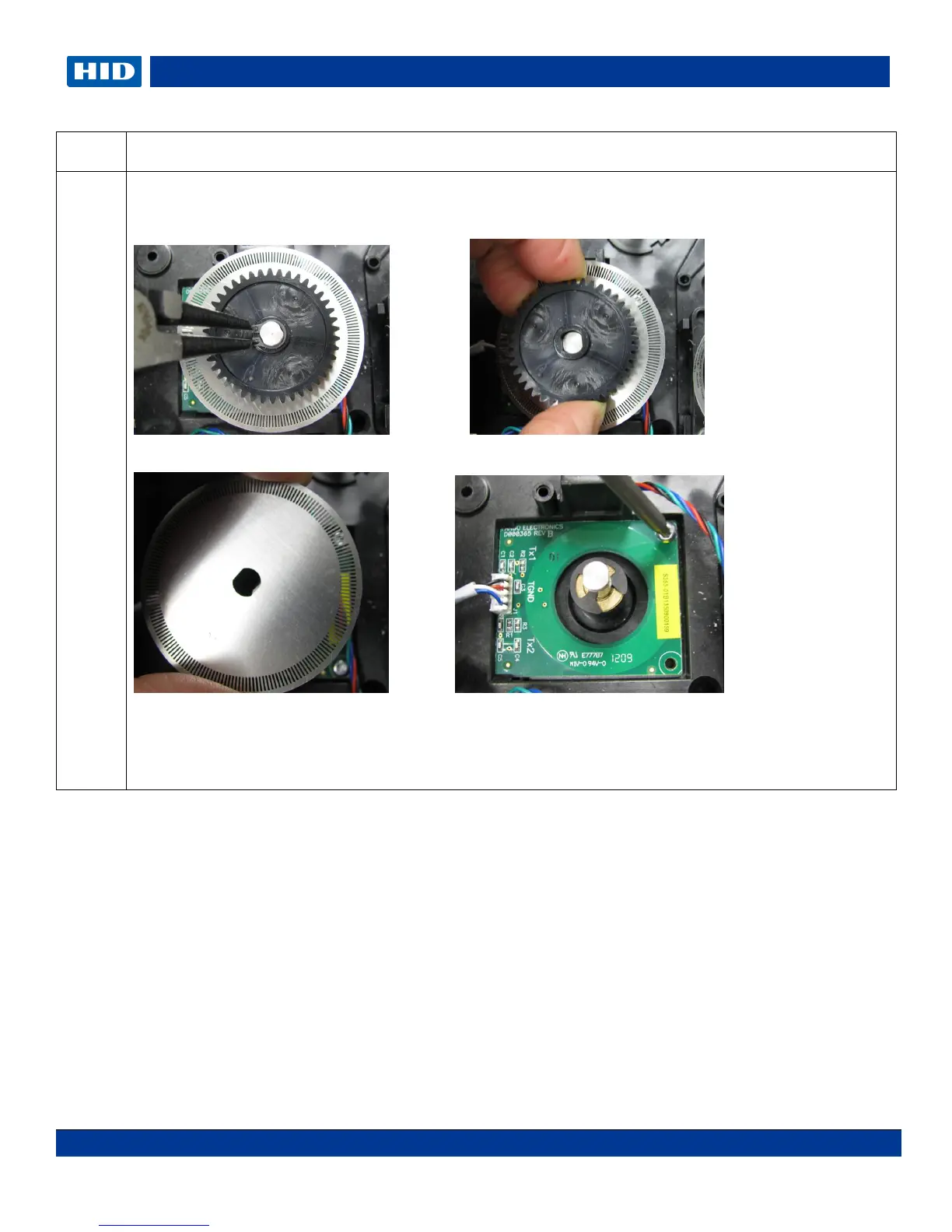

Replace the RFID PCB (A000365-01) Remove the Rewind Assembly as described above.
Remove the Retaining Ring (140048) Gear (D920170)
Remove the Encoder Wheel (810492) 2 screws hold the PCB (A000365-01)
Slide the RFID PCB to the right. The PCB is held by tab on the left of the frame.
Replace with new PCB A000365-01.
Reverse Assemble.
