DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 40
.
Step
Procedure
11

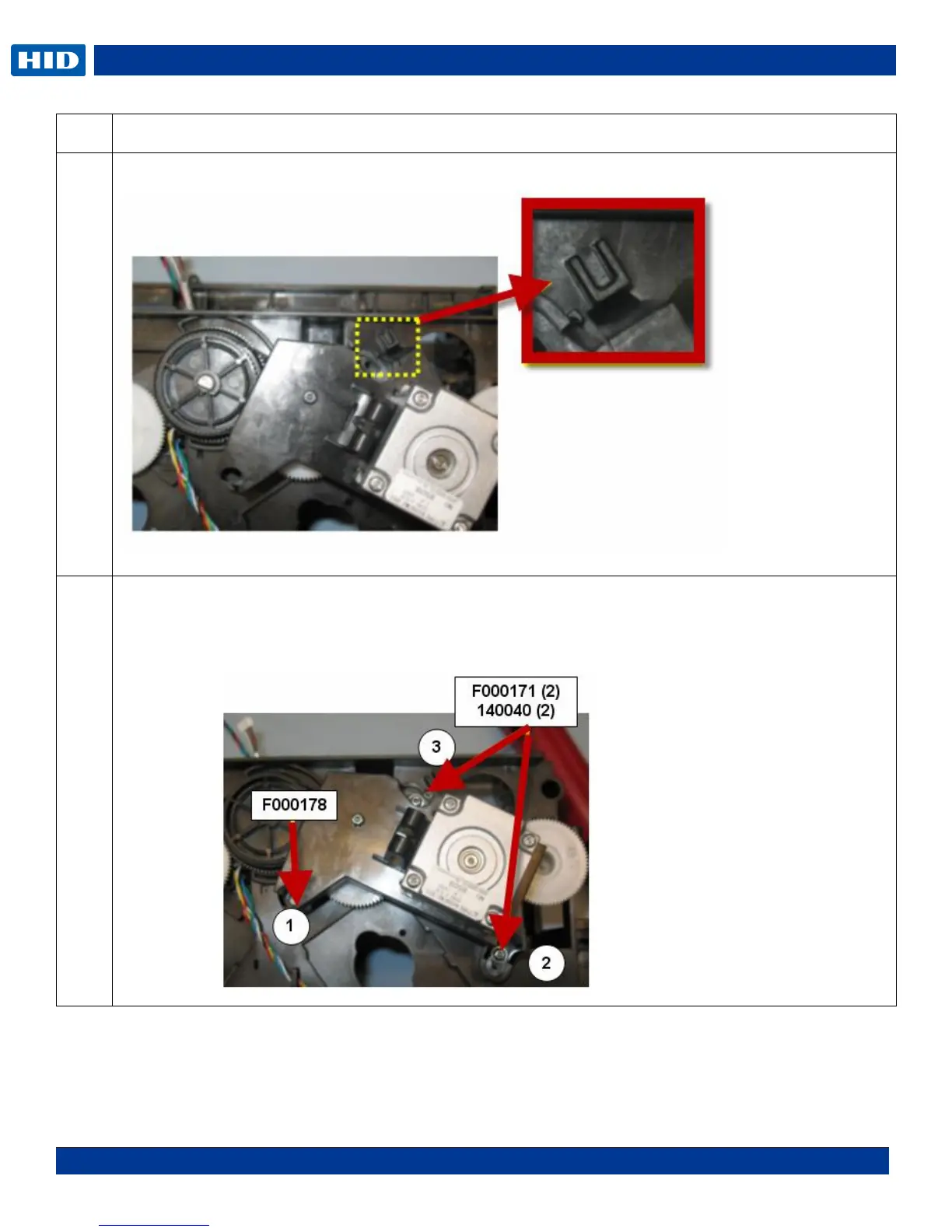

Fit the Mount behind the tab on the printers side plate frame. This locks the mount in place.
12
Secure the stepper drive assembly with 2 screws (F000171) with 2 washers (140040), and one screw
(F000178) at the specific locations shown.
NOTE: Lightly tighten all screws first then tighten the (F000171) screws last.
