DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 48
.
Step
Procedure
4

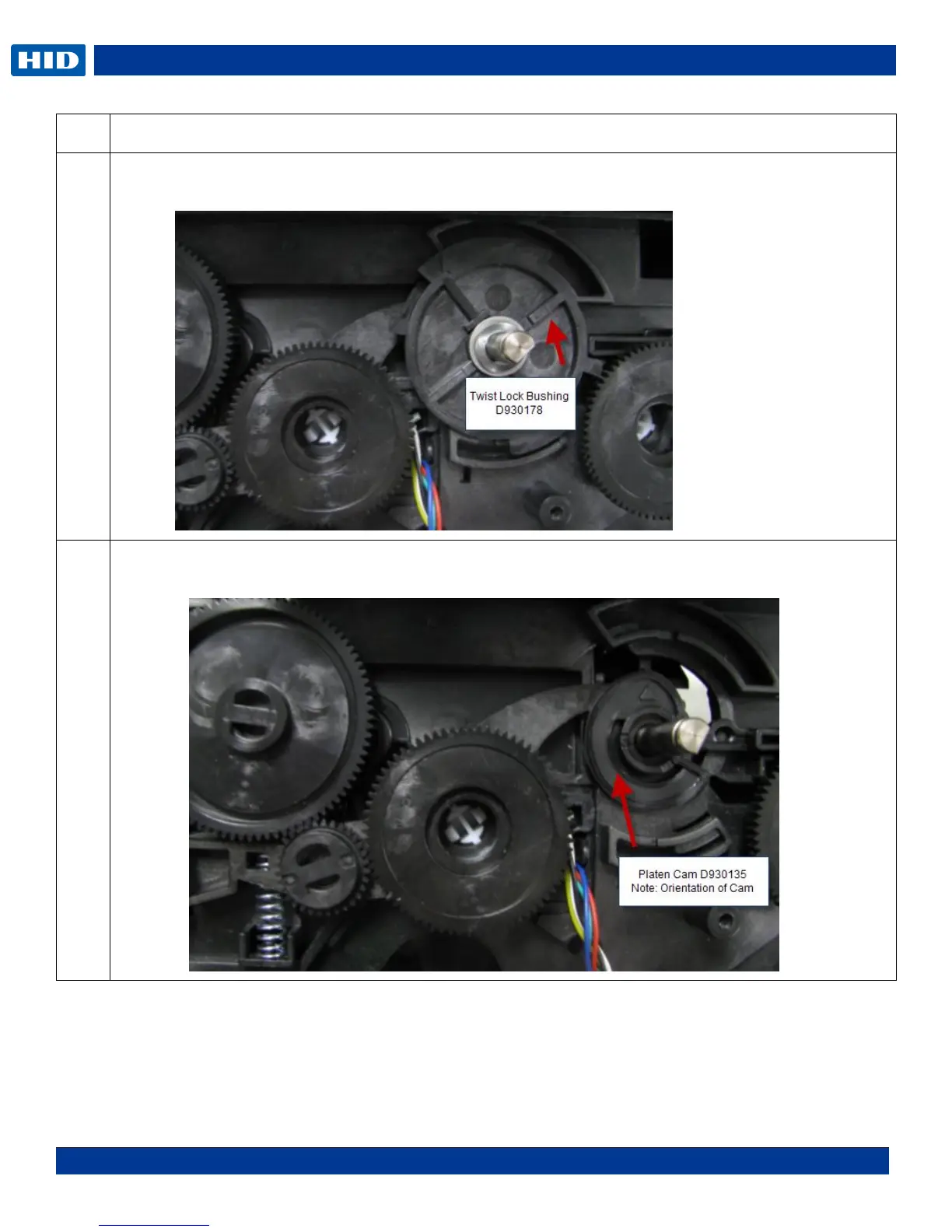

Turn the twist lock Bushing-Twist Lock (D930178) counter clockwise to unlock and lift up. It is not
necessary to remove the surrounding gears.
5
Remove the Platen Cam (D930135). Rotate cam clockwise to remove. Pull off of the Platen Roller
Shaft.
