Step
Procedure
4
Replace with the new sensor.
Line up the sensor and push down to snap it in place UNDER the small tab.

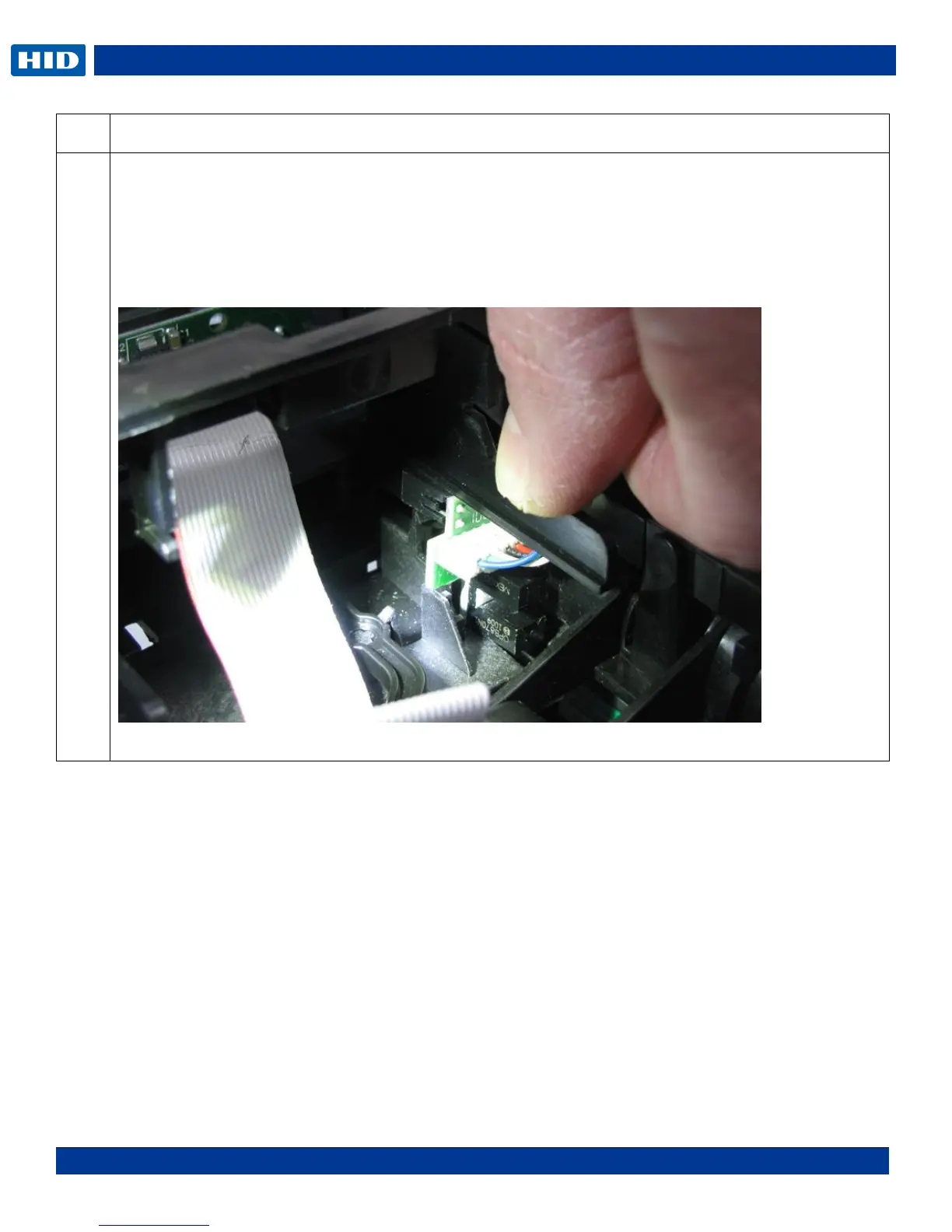

Route the cable on the right side of the frame as shown in the picture below.
Connect to the mainboard
Reverse assembly to complete the procedure.
