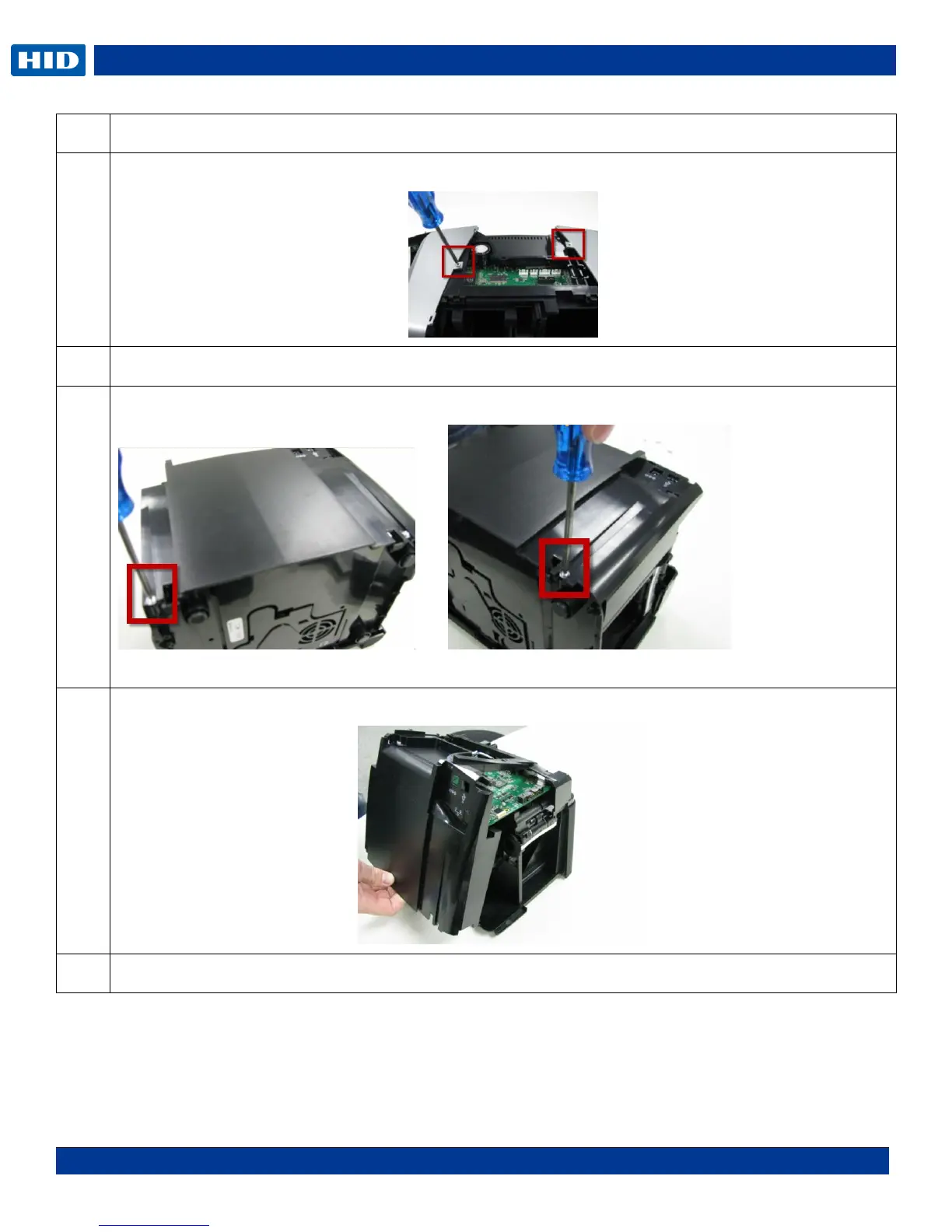

Step
Procedure
4
Remove the 2 screws (F000178) that hold the side covers to the frame.
5
Remove both side covers. The input and output hoppers are attached to the side covers.
6
Remove the 2 screws on the bottom right and left side to remove the inner back cover.
Left side Right side
7
Lift UP the bottom of this cover to release the upper tabs that hold the cover to the frame.
8
Procedure is complete.
