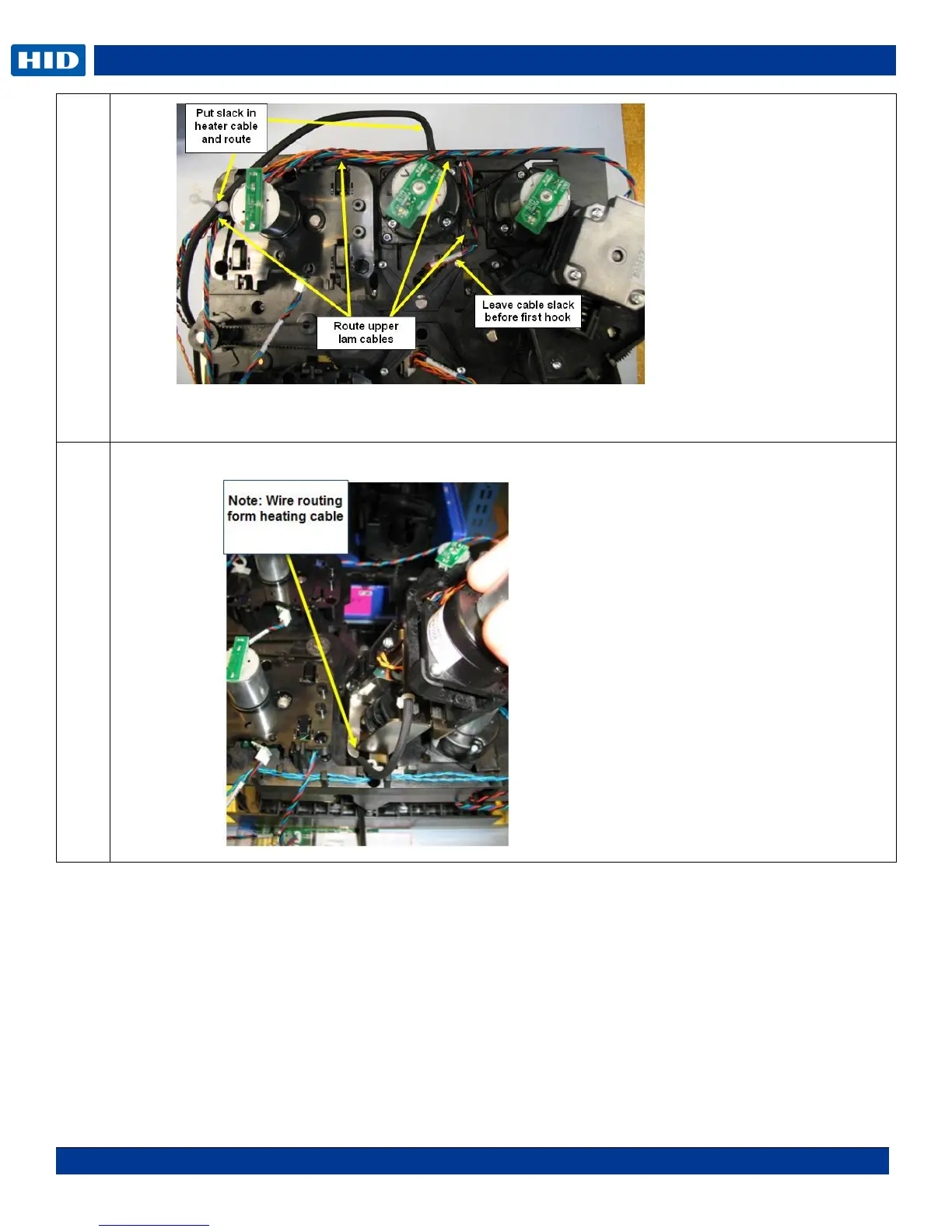

NOTE: Ensure there is cable slack between the lam head and the upper wire clip to allow free
movement of the lam head. Do not pinch any wires.
8
Make NOTE: of how the wires are routed. LOWER ASSEMBLY
(continued next page)
