Step
Procedure
B-3
RIGHT ROLLER: Remove the retaining ring (140048) and Gear (8180266).
B-4
Remove the Shaft Bushing. (D900046)

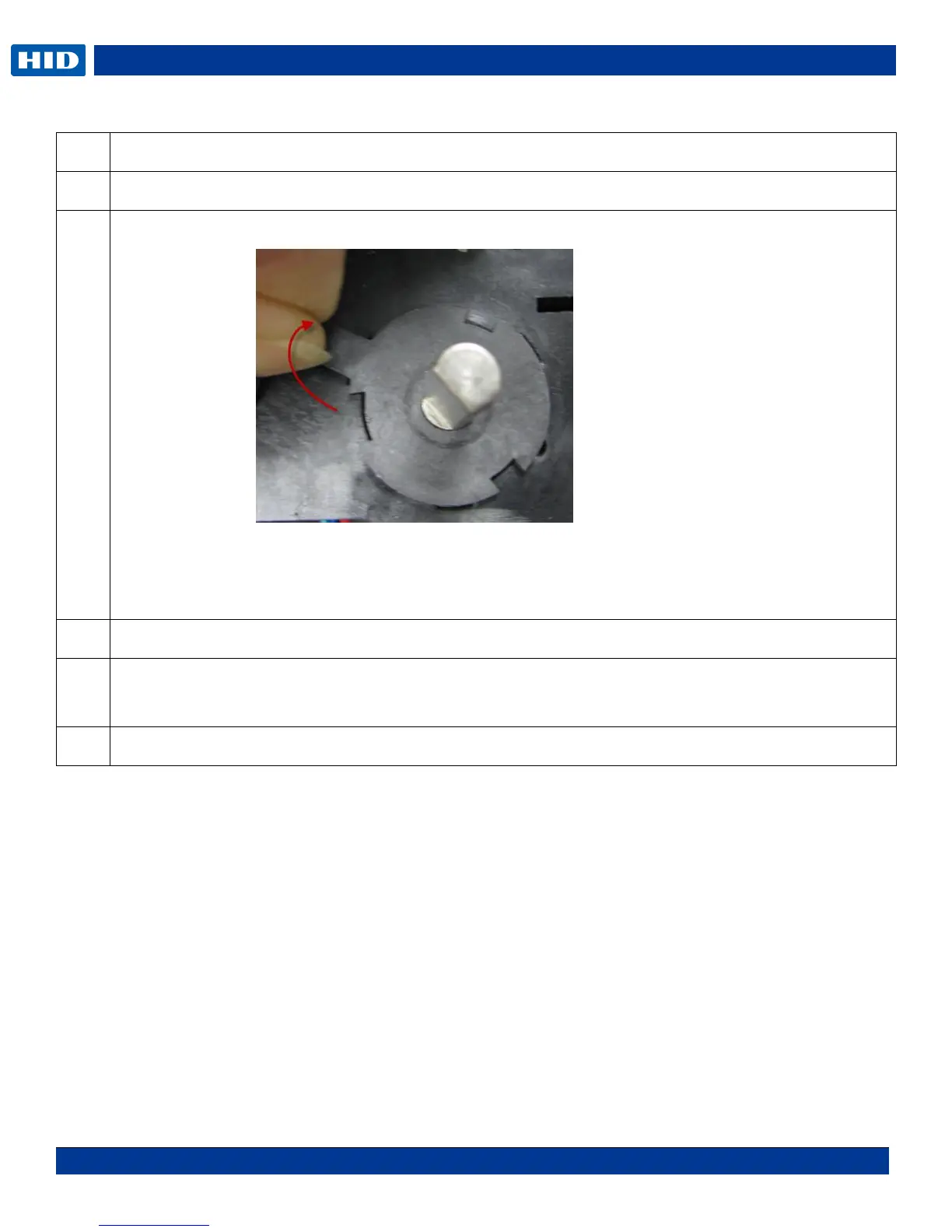

Unlock the shaft bushing (D900046) by turning it counter clock wise.
(TIP: Lift UP on the tab to unlock the pin underneath the tab.)
B-5
Pull out the roller (D920119-01).
B-6
Replace with the new roller (D920119-01).
Use the E CLIP from the old roller. Make NOTE: of how this is placed on the roller.
B-7
Reverse assembly to complete the roller replacement.
