FaroArm User Guide
January 2007
6
Chapter 1: Introduction to the FaroArm
To fasten the FaroArm:
1 Attach the 3.5" threaded ring and surface mount plate to any
stable location. Tighten all mounting bolts to 100-inch pounds.
2 Place the FaroArm on top of the 3.5” threaded ring.
3 Screw the threaded collar clamp onto the base of the FaroArm
and the 3.5” threaded ring.
4 Use the wrench to tighten the threaded collar clamp.

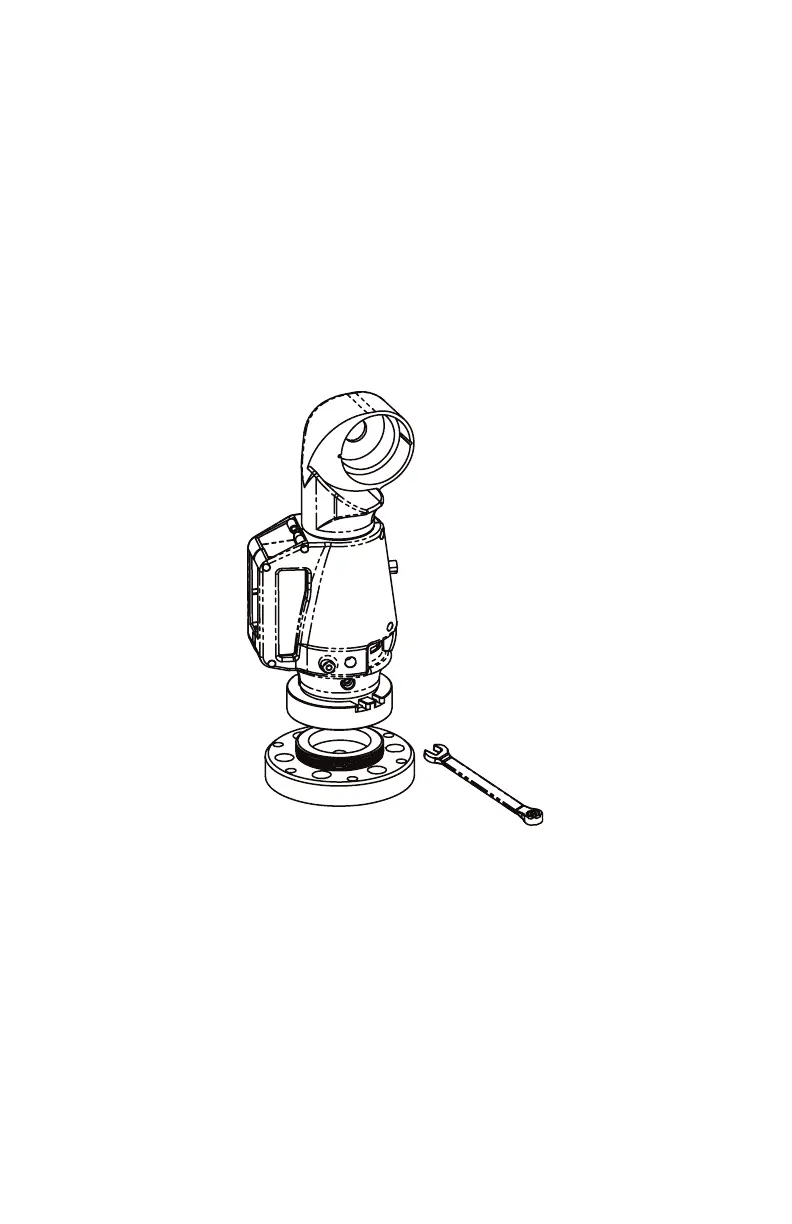

Figure 1-3 Mounting the FaroArm
