FaroArm User Guide
January 2007
16
Chapter 1: Introduction to the FaroArm
Renishaw Probe Installation and Operation
The Renishaw Probe installation and operation is optional. Renishaw
probes collect points by touching a stylus to the part. FARO distributes
the TP-20 probe.
N
OTE: The Renishaw TP-2 Probe is not supported.
TP-20 Probe Kit
The TP-20 Probe kit contains:
• Renishaw (S1) C Spanner wrench
• Renishaw S9 double-ended C Spanner wrench
• Two Renishaw S7 stylus tools
• Renishaw CK200 cleaning kit
• A magnetized TP-20 probe body
• Three separate magnetized TP-20 probe modules, which
connect to the TP-20 probe body.
To install the TP-20 Probe:
1 Remove any standard FaroArm probe.
2 Remove the set screw using the supplied allen wrench.

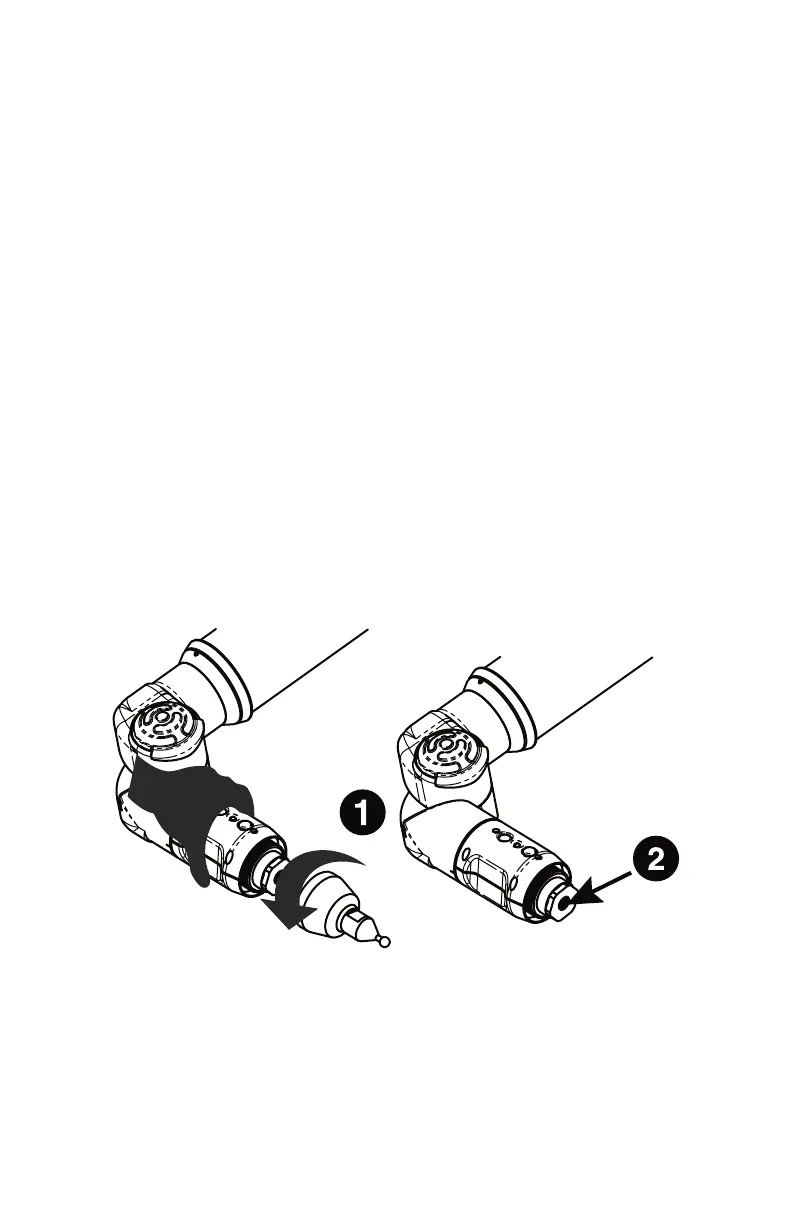

Figure 1-11 Installing a Renishaw Probe
