FaroArm User Guide
January 2007
11
Chapter 1: Introduction to the FaroArm
Referencing the Encoders
Each of the six (or seven) encoders in the FaroArm must be referenced
before the system can output data. The end stop warning window shows
all six encoders in error until each is referenced. In a systematic
manner, rotate links 1 through 6 (7) until each warning clears.
N
OTE: The FaroArm must be properly connected to the host
computer running the measuring software to see the R
EFERENCE
E
NCODERS dialogue box.

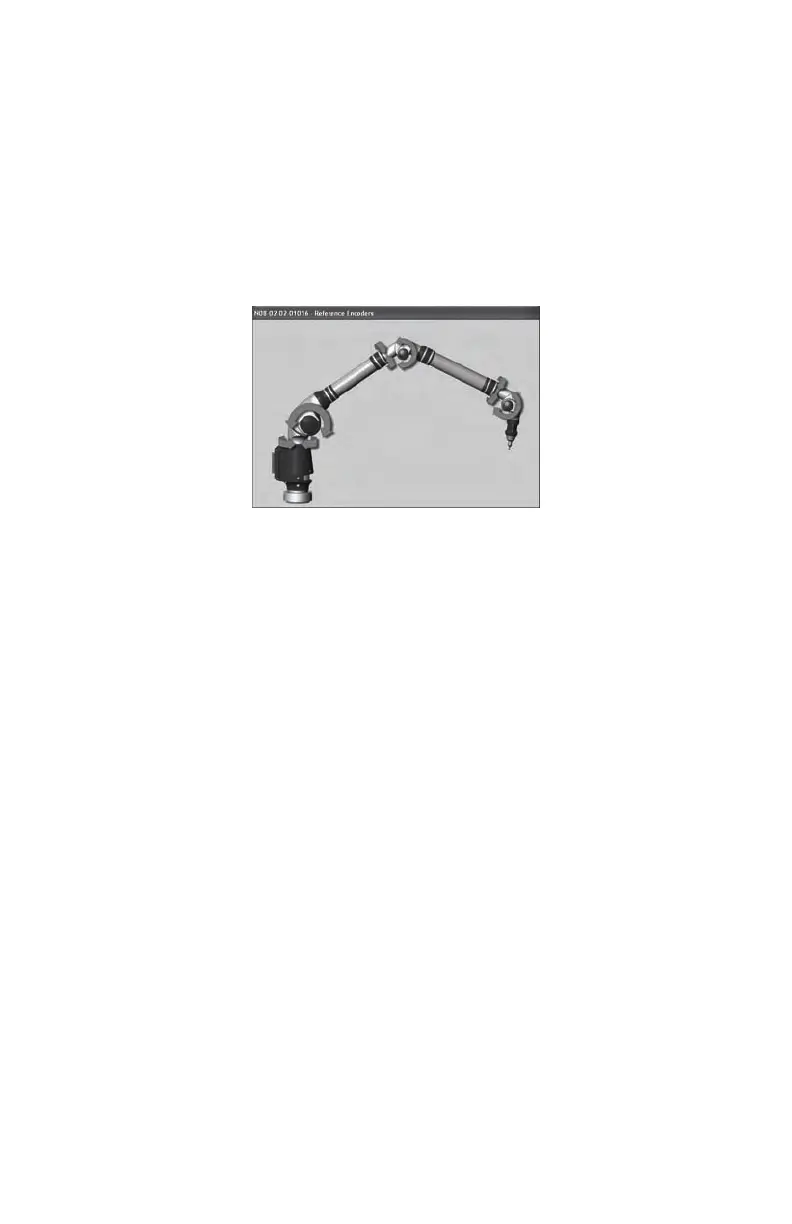

Figure 1-8 Referencing the encoders
08M46E00_FaroArmUSB.book Page 11 Monday, January 15, 2007 1:12 PM
