Chapter 2: CAM2 Measure Devices Menu
Diagnostics
Select DEVICES <
DIAGNOSTICS from the DEVICES menu.
The D

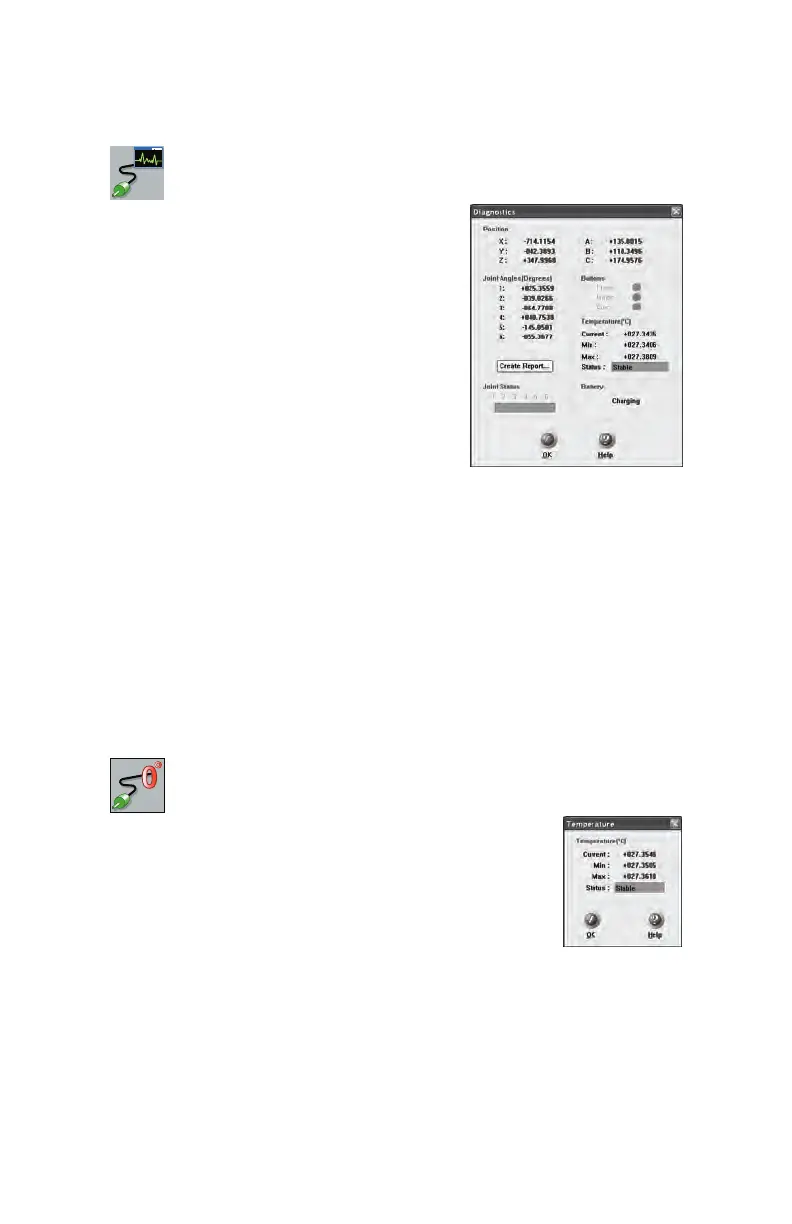

IAGNOSTICS dialogue box displays:
• X, Y, Z Machine Coordinates.
• Encoder angles for each joint of the
FaroArm.
• FRONT and BACK button, and
Auxiliary Port operations.
• The Temperature of the FaroArm’s
internal sensor.
• The Joint Status of each joint of the FaroArm which also includes
the encoder end stop warnings.
• The status of the FaroArm battery.
Click the CREATE REPORT button to run a diagnostic test on your
FaroArm. This report can be saved to a file which can be sent to
FARO’s Customer Service Department.
Press the ESC key or click the OK button to exit the command.
Temperature
Select DEVICES < TEMPERATURE from the
DEVICES menu. This command displays the current
temperature of the FaroArm and the elapsed time of the
temperature sampling.
Because different components heat up or cool down at
different rates, the FaroArm must be at a steady state
temperature (within ±5° Celsius for five minutes) before measuring with
the device.
