TST
Assembly instructions
FUF2 / FU3F-A/-C/-F
FEIG ELECTRONIC GmbH
Page 39 of 114
TST_FUxF-A-C-F_Montageanleitung_EN_15
5.2.3 24 VDC Brake
3~
M
W
V
U
PE
W
V
U
+
-
-
Brake 24V / 2.5A with
brake current
monitoring
P
E
control line including
brake connection and
limit switch connection
Shielding of the
motor cable
Shielding of the
motor cable
+
T1 T2 T3

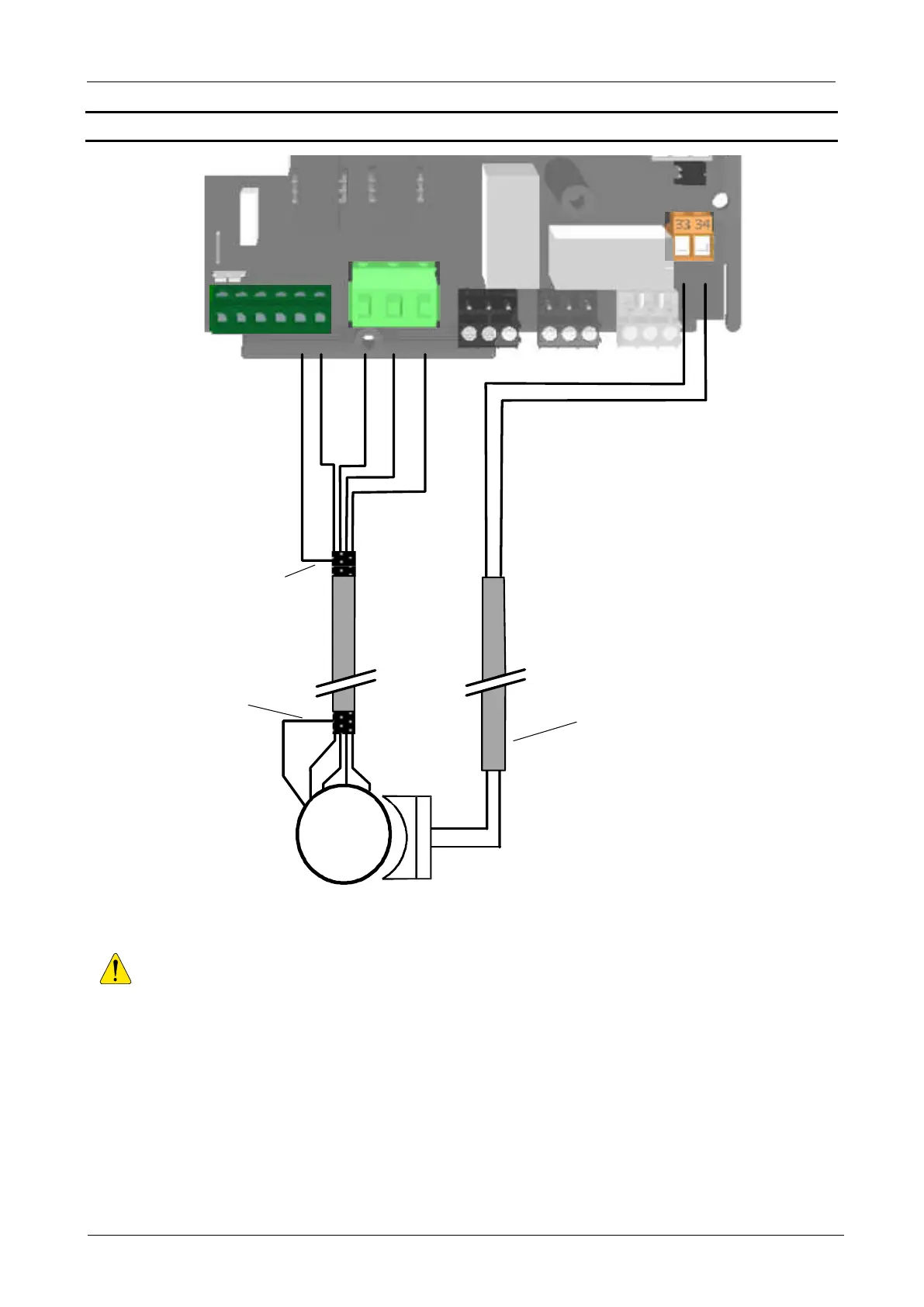

Figure 14: Motor connection with 24VDC brake
Observe maximum voltage and power specifications (see technical data "Control
voltage / external supply" page 106.
