6.4 Safety edge monitor TST SURA
The Safety edge monitor is available in version TST SURA-1 and TST SURA-6.
Depending on the type, 1 or 6 safety edge may be monitored.
8K2
8K2
8K2
8K2
8K2
8K2
8K2
X88X83

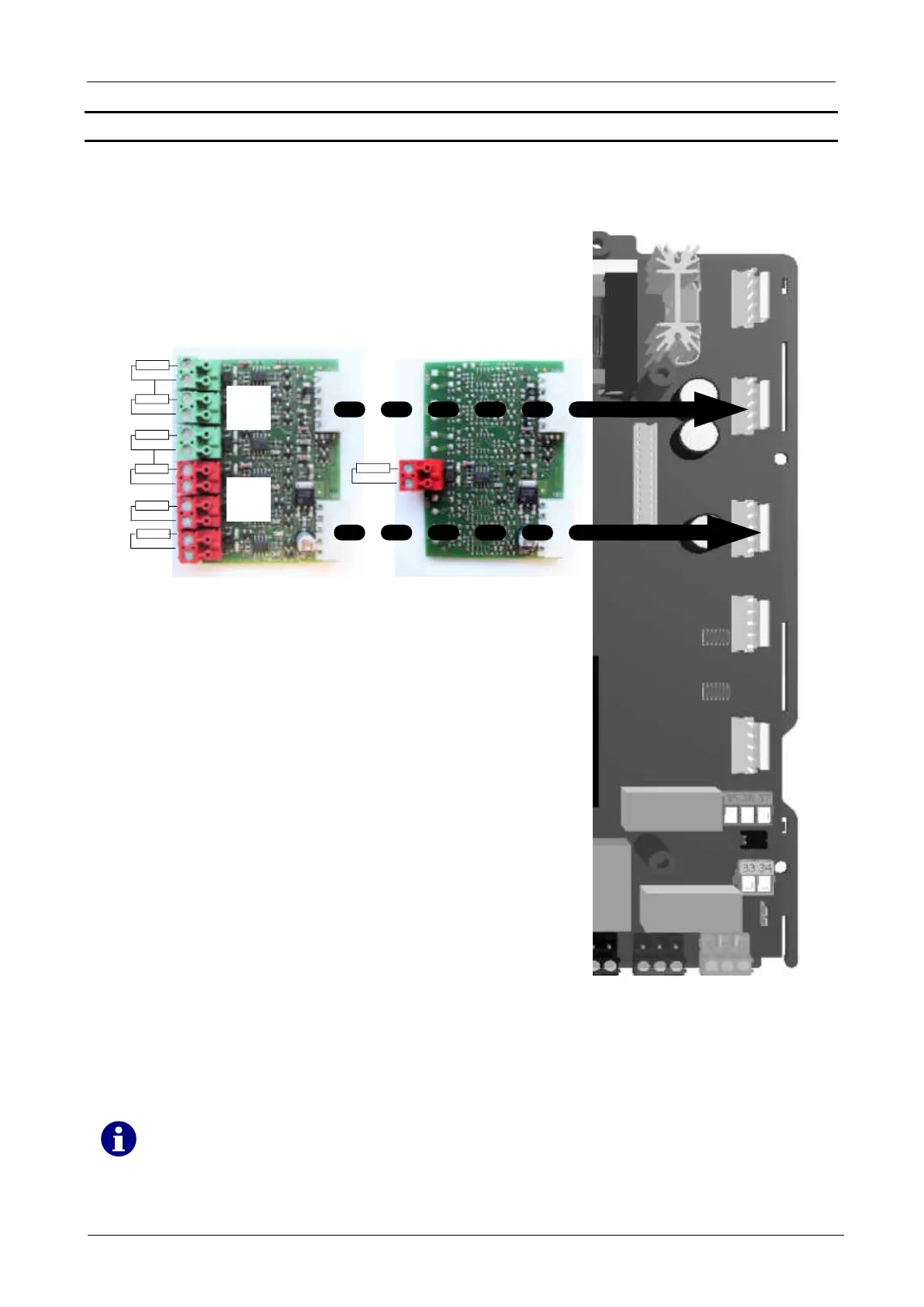

Figure 37: Safety edge monitor
To activate the slot for the safety edge monitor, parameter P.802 must be set to 0101 for
TST SURA-1 or 0106 for TST SURA-6.
