5.3.2 Connection of an electrical resistance safety edge
45
44
43
42
41
Spiral cable
Junction
box
8K2
43
44
41
42
Slack rope
switch
optional slip
door
brown
white
Outside
white
Inside
brown

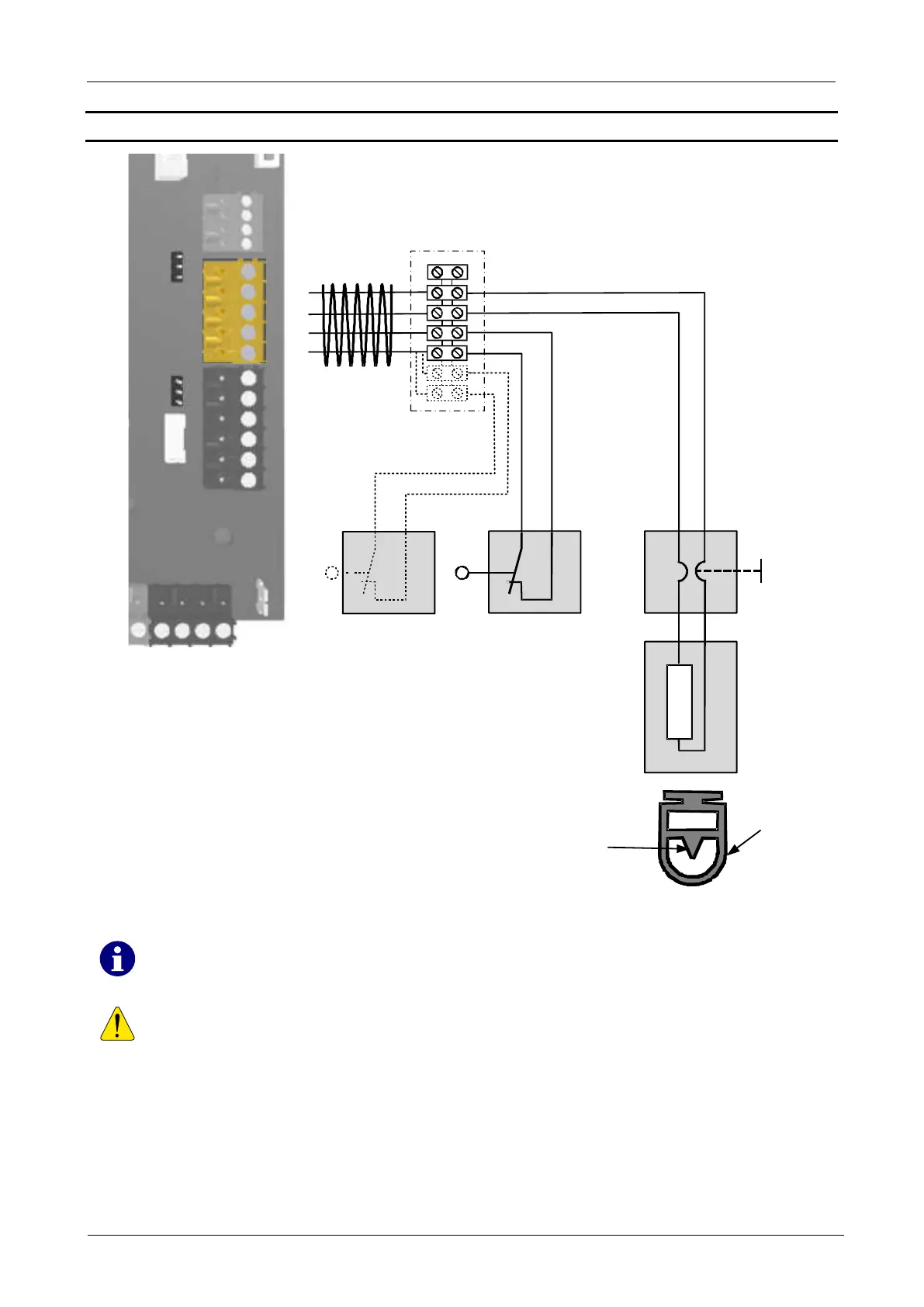

Figure 16: Connection of an electrical resistance safety edge
If the safety edge type was not automatically detected, the resistive safety edge on this
input can be activated via parameter P.460 = 1.
If no safety edge is connected, automatic closing of the door is not possible.
