Feig Electronic TST FUF2-C User Manual

TST
Assembly instructions
FUF2 / FU3F-A/-C/-F
FEIG ELECTRONIC GmbH
Page 50 of 114
TST_FUxF-A-C-F_Montageanleitung_EN_15
5.6.3 Absolute encoder DES
Example of use!
Please also observe the information in chapter 3 Safety functions in accordance with EN
12453:2017 on page 15.
Wire 1: Emergency stop
Wire 3: GND
Wire 6: 12 VDC
Wire 2: Channel B
31*
à Terminal 31
à Terminal 35
à Terminal 36
Wire 4: Channel A
à Terminal 34
Wire 5: Emergency stop
à Terminal 32
à Terminal 33
32*
33*
34*
35*
36*
1
2
3
4
5
6

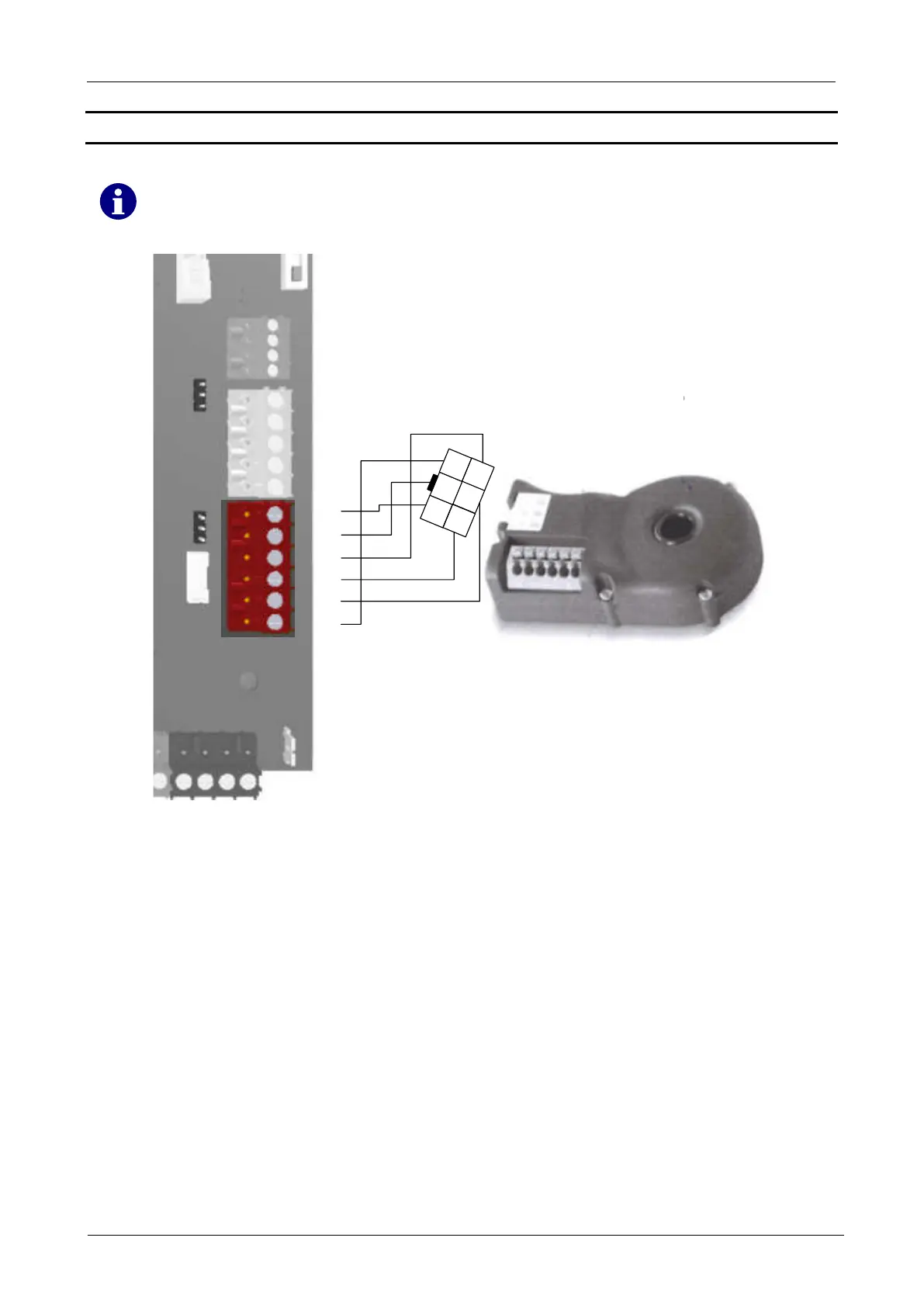

Figure 24: Connection of absolute encoder DES

Feig Electronic TST FUF2-C Specifications

General

Brand	Feig Electronic
Model	TST FUF2-C
Category	Controller
Language	English
