TST_FUxF-A-C-F_Montageanleitung_EN_15
6.6 Expansion boards RFUxIO-A/-B/-E
The expansion boards RFUxIO-A/-B/-E provide an extension to the input / output. They brings the
following applications:
TST RFUxIO-B: for connection to superordinate electronic units such as host computer or
Programmable Logic Controller (PLC).
TST RFUxIO-E: for the output of power signals (e.g. for oncoming traffic sample control).
The expansion board RFUxIO-B/-E has 6 additional inputs and up to 6 relay outputs (TST
RFUxIO-E), which are freely programmable in their function. The expansion board is fitted on
spacers and are connected with the door controller via the plug connector X30a.
The terminals must be mounted in an upright position only!
X30a
X30b
X20a
320 321 322 323 324 325
360 361 362 363

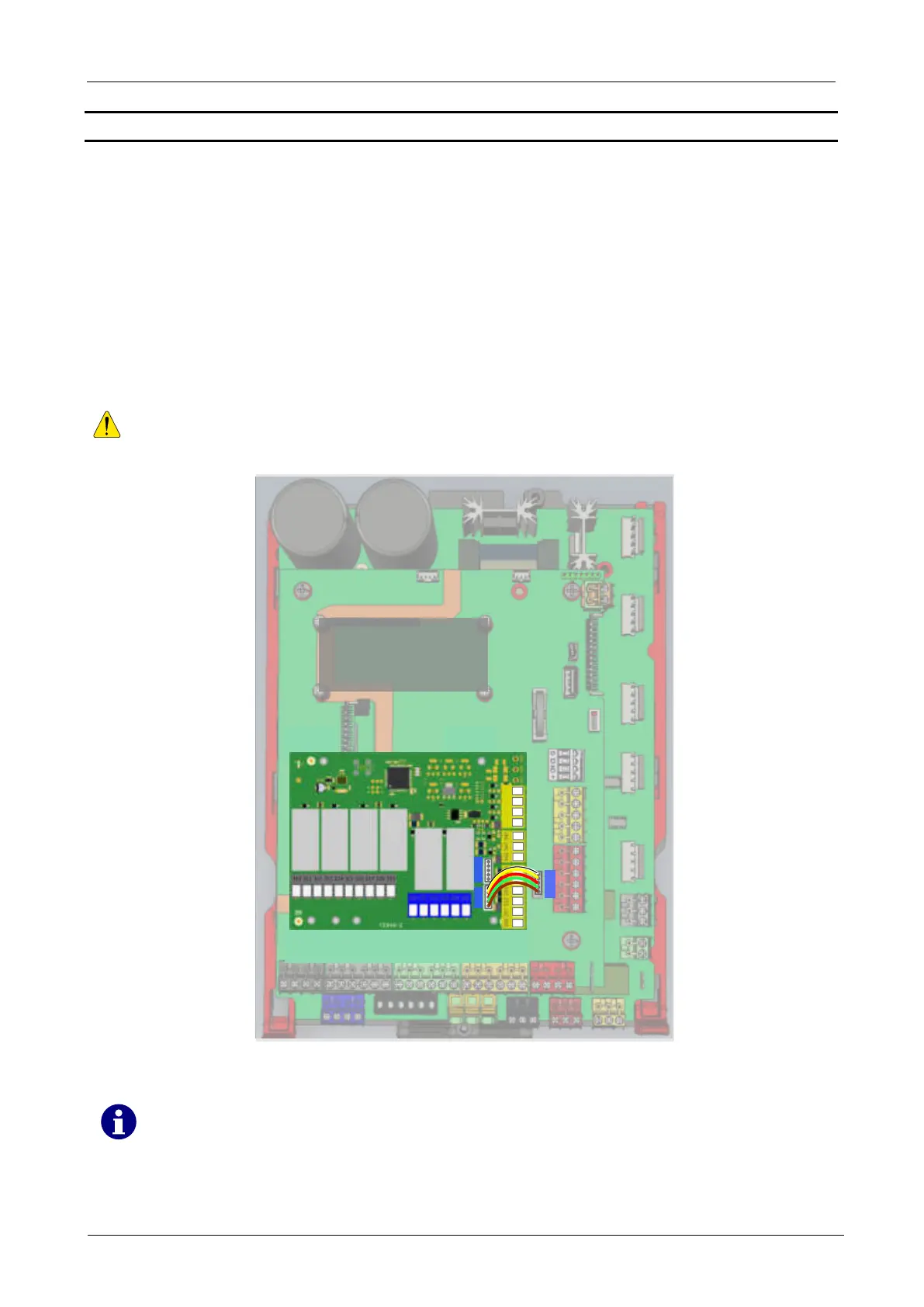

Figure 39: Connection example with the TST RFUxIO-E
Activate the expansion board by setting the parameter P.800 to 8.
