TST
Assembly instructions
FUF2 / FU3F-A/-C/-F
FEIG ELECTRONIC GmbH
Page 44 of 114
TST_FUxF-A-C-F_Montageanleitung_EN_15
5.4.2 Connect the electrical resistance safety edge at input 10
8K2
outside
white
Inside
brown
brownwhite
61
62
63
64
65
66
Spiral cable

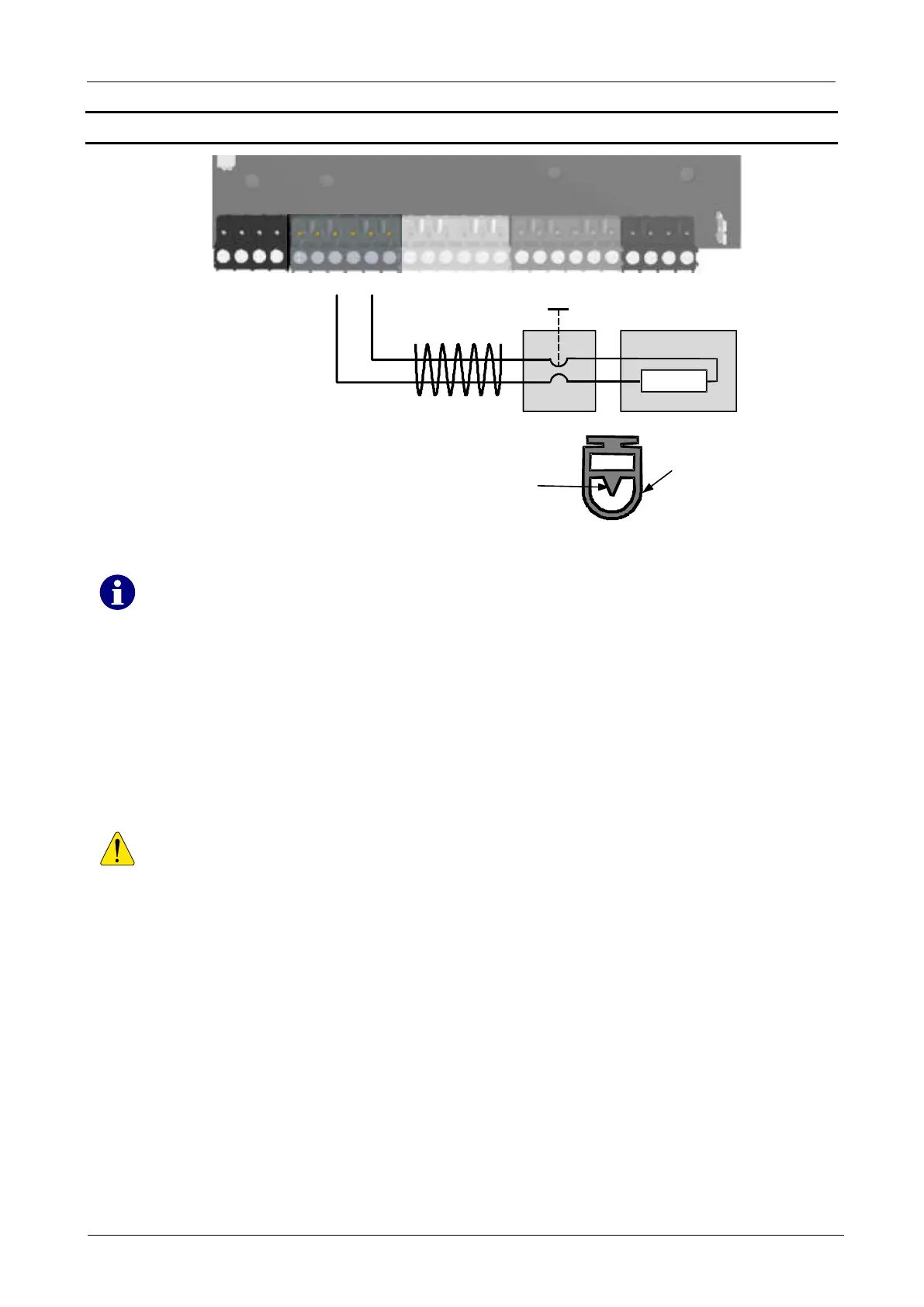

Figure 18: Connection of an electrical resistance safety edge
In order to use an optical safety edge on input 10, the function of this input must first be
determined. For this purpose, parameters P.50A is used. For the setting, refer to the
parameter list in chapter input profiles.
Typically, this input is used as safety input during opening movement. For this example,
parameter P.50A = 1406 is set.
Then the edge type of parameter P.5A2 must be set. The following settings are
available.
P.5A2 = 2: 8K2 Safety edge normally open
P.5A2 = 3: 1K2 Safety edge normally closed
P.5A2 = 6: 1K2 Safety edge, N.O.
P.5A2 = 7: 8K2 Safety edge, N.C.
It is important to first set parameter P.50A and then only parameter P.5A2.
