4.1.2 Required free space in plastic and steel housing
The dimensions for the internal distances include all expansion boards.

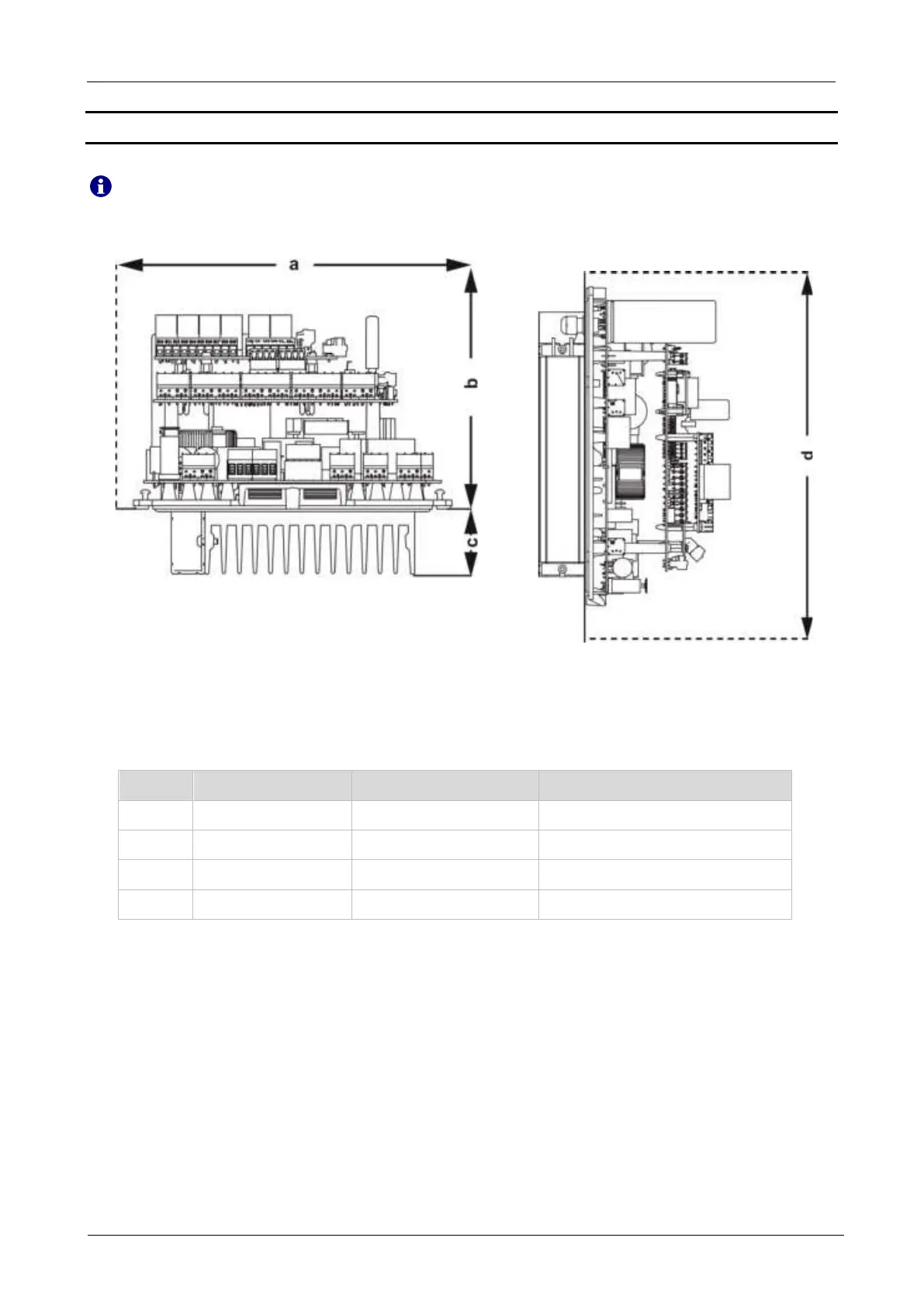

Figure 2: Bottom view
Figure 3: Side view
Table 2: Minimum distances to housing walls
Pos.
Steel housing
Plastic housing
Description
a
208.4 mm
199.0 mm
Width
b
149.2 mm
144.5 mm
Depth without heat sink
c
40.05 mm
40.05 mm
Depth heat sink
d
275.4 mm
266.0 mm
Height
