TST
Assembly instructions
FUF2 / FU3F-A/-C/-F
FEIG ELECTRONIC GmbH
Page 18 of 114
TST_FUxF-A-C-F_Montageanleitung_EN_15
4.1 Version without housing (TST FUxF-xPR)
Observe technical data and required clearances
The board set is mounted on a mounting frame and can be installed in another housing
together with the attached expansion cards. To do this, consider the space required between
the board set and the housing wall.
The following accessories are included with the board variants:
• Two safety clips for transport security in the housing
• Two sliders as quick release fasteners for the mounting adapter
• An EMC bracket as spacer and grounding of the motor shield in steel / stainless steel
housings
Depending on the installation, additional spacers are required. These are not included in the
scope of delivery!
4.1.1 Dimensions of the drilling's in the mounting frame

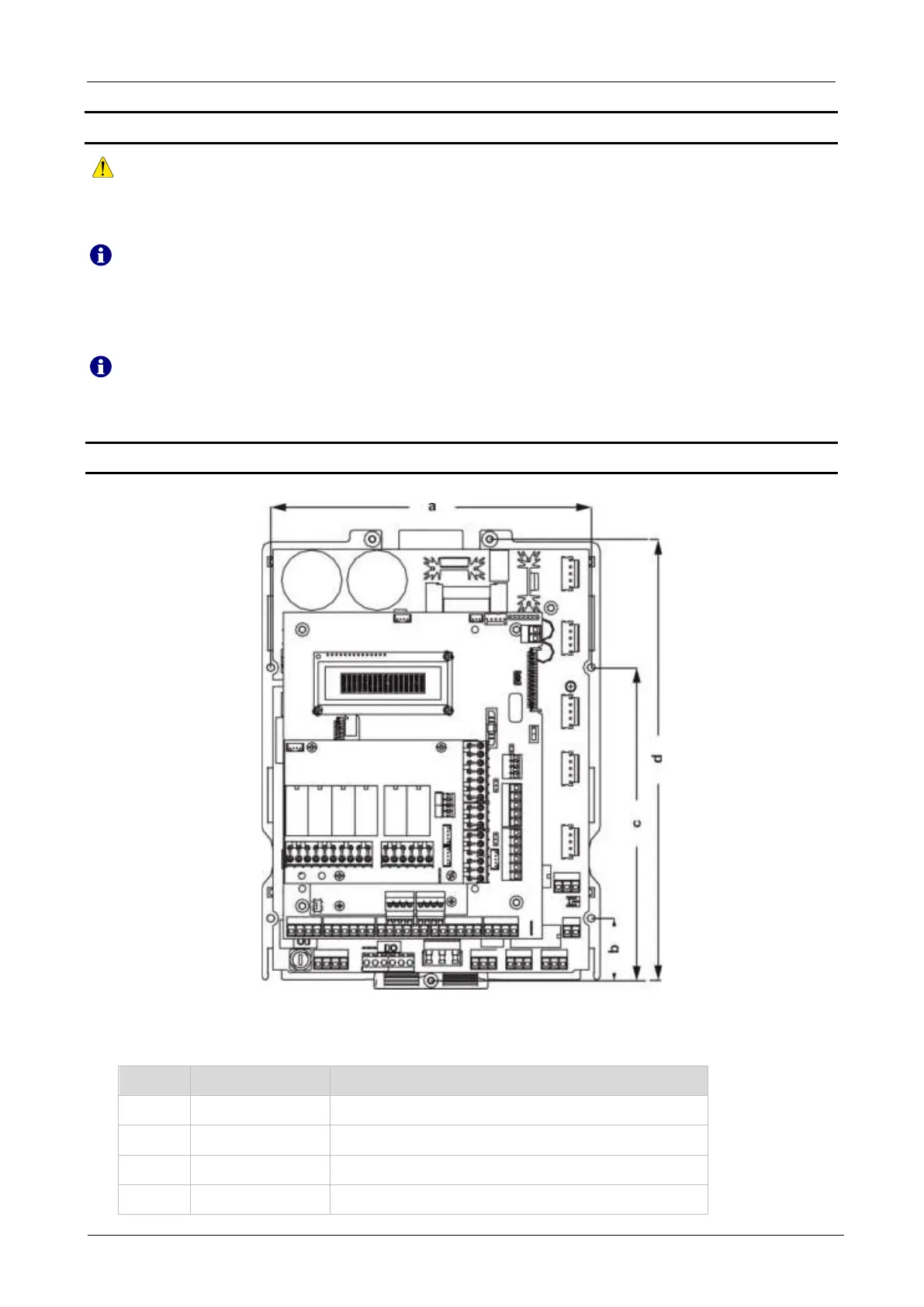

Figure 1: Mounting holes in mounting frame without quick-release fastener
Table 1: Dimensions of the drilling's for mounting
Pos.
Measurement
Description
a
185.6 mm
Total width
b
36.0 mm
Height mounting hole bottom
c
181.2 mm
Height mounting hole top
d
255.5 mm
Total height
