Feig Electronic TST FUF2-C - Door Movement Optimization; Optimizing Door Opening

TST
Assembly instructions
FUF2 / FU3F-A/-C/-F
FEIG ELECTRONIC GmbH
Page 77 of 114
TST_FUxF-A-C-F_Montageanleitung_EN_15
10 Movement optimisation for the door
Adjusting the pre-limit switch positions and the ramps can optimize or improve the movement of
the door.
The following illustrations for OPEN and CLOSE moves show the operation of the frequency
converter.
10.1 Opening of the door
Stop ramp ro
Limit switch
OPEN
P.230
Pre limit switch
OPEN
P.232
OPENING
Limit switch Close
Creep speed F2
P.320
Max. Opening
travel speed F1
P.310
Start ramp 1
P.311/P.312
Brake ramp r2
P.321/P.322

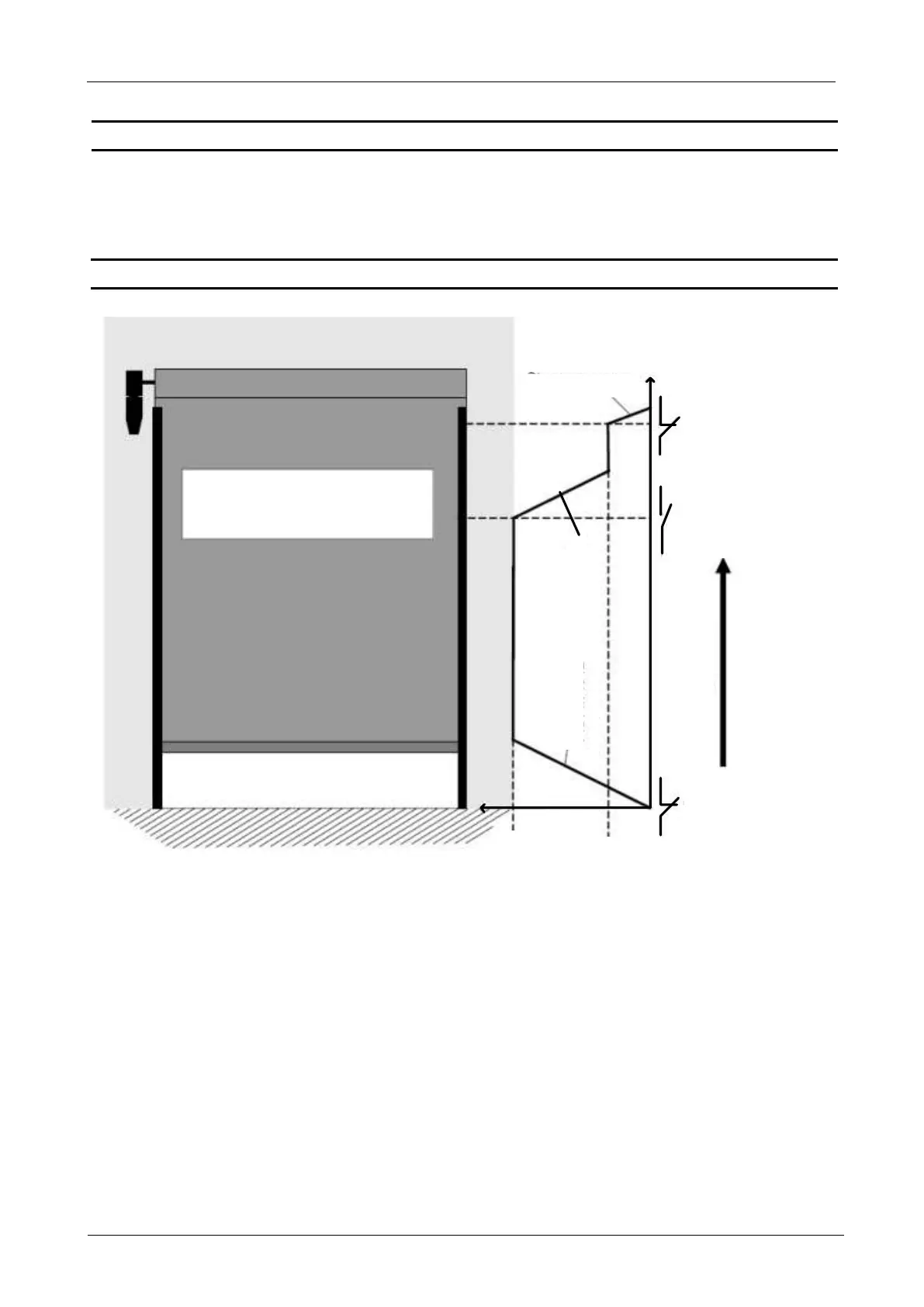

Figure 44: Opening using frequency converter
The frequency converter starts the door movement with start ramp "r1". It accelerates from 0 Hz to
the max. travel speed.
The door is moved at the max. travel speed until the pre-limit switch for the limit position OPEN is
reached. At this point it reduces the speed of the door to creep speed using ramp "r2”. The door
now moves at creep speed until the limit switch OPEN is reached.
At this point the door is stopped (ro).
