Feig Electronic TST FUF2 Series User Manual

TST
Assembly instructions
FUF2 / FU3F-A/-C/-F
FEIG ELECTRONIC GmbH
Page 19 of 114
TST_FUxF-A-C-F_Montageanleitung_EN_15

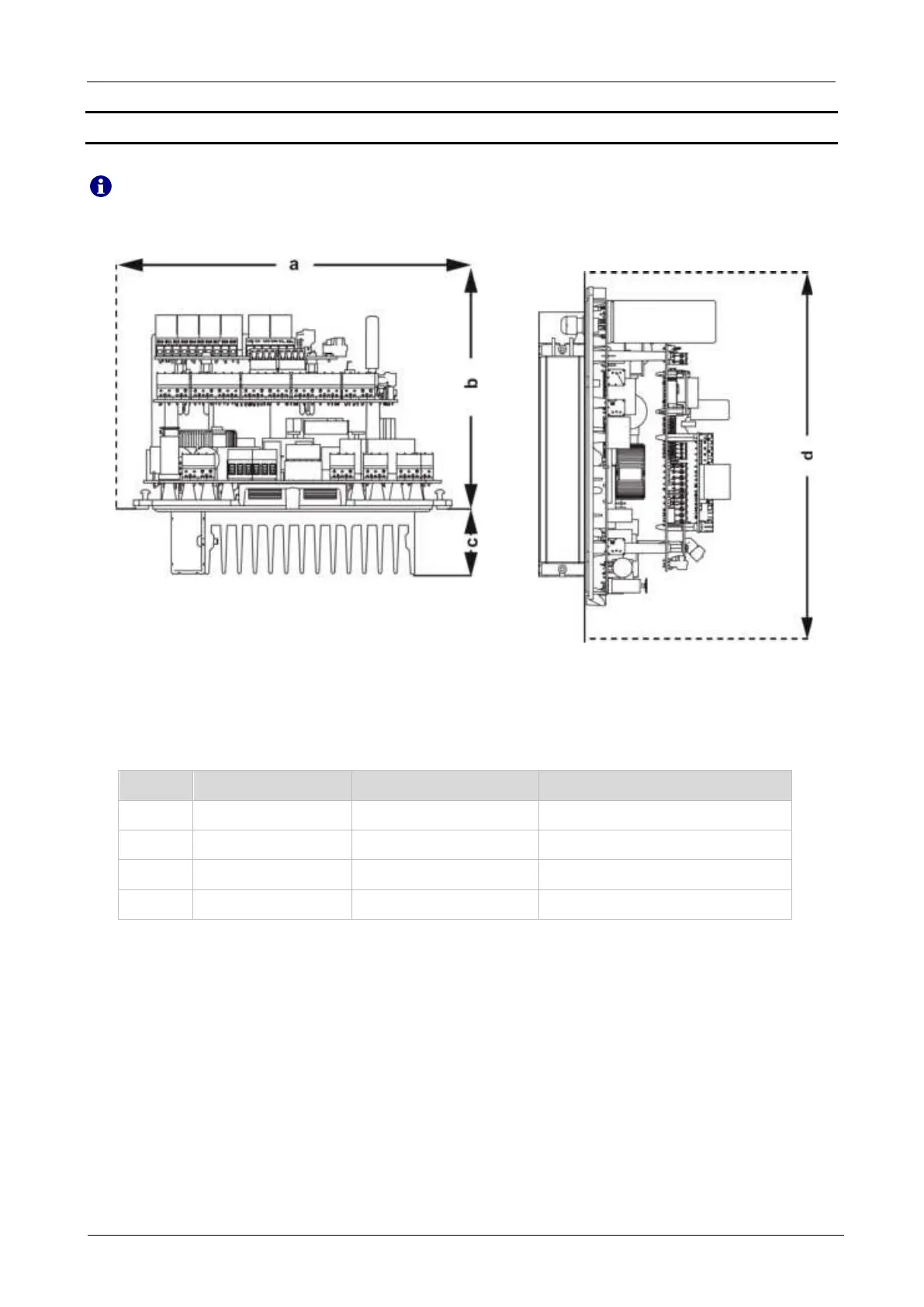

4.1.2 Required free space in plastic and steel housing
The dimensions for the internal distances include all expansion boards.
Figure 2: Bottom view
Figure 3: Side view
Table 2: Minimum distances to housing walls
Pos.
Steel housing
Plastic housing
Description
a
208.4 mm
199.0 mm
Width
b
149.2 mm
144.5 mm
Depth without heat sink
c
40.05 mm
40.05 mm
Depth heat sink
d
275.4 mm
266.0 mm
Height
