TST
Assembly instructions
FUF2 / FU3F-A/-C/-F
FEIG ELECTRONIC GmbH
Page 49 of 114
TST_FUxF-A-C-F_Montageanleitung_EN_15
5.6.2 Absolute encoder TST PD
Absolute encoder TST PD is a multi-turn encoder. Due to a selectable transmission ratio, this
encoder can be used for both very fast (e.g. motor shaft) as well as very slow shafts (e.g. door
shaft). The driving shaft may execute more than a single revolution.
This encoder may also be equipped with the WICAB radio system to transfer the status of the
safety edge without a spiral cable. For this purpose, the stationary unit TST PD FSAS and the
mobile unit TST FSAM or TST FSBM are required.
+12 V
GND
RS485 B
RS485 A
1
2
3
4
M8 plug
with 4 poles
Wire 1: brown
Wire 3: blue
Wire 2: white
M8 4-pole
socket
36*
Min. IP65, gold
plated contacts
Wire 4: black
shield / PE
M8 plug
with 4 poles
35*
34*
33*
32*
31*

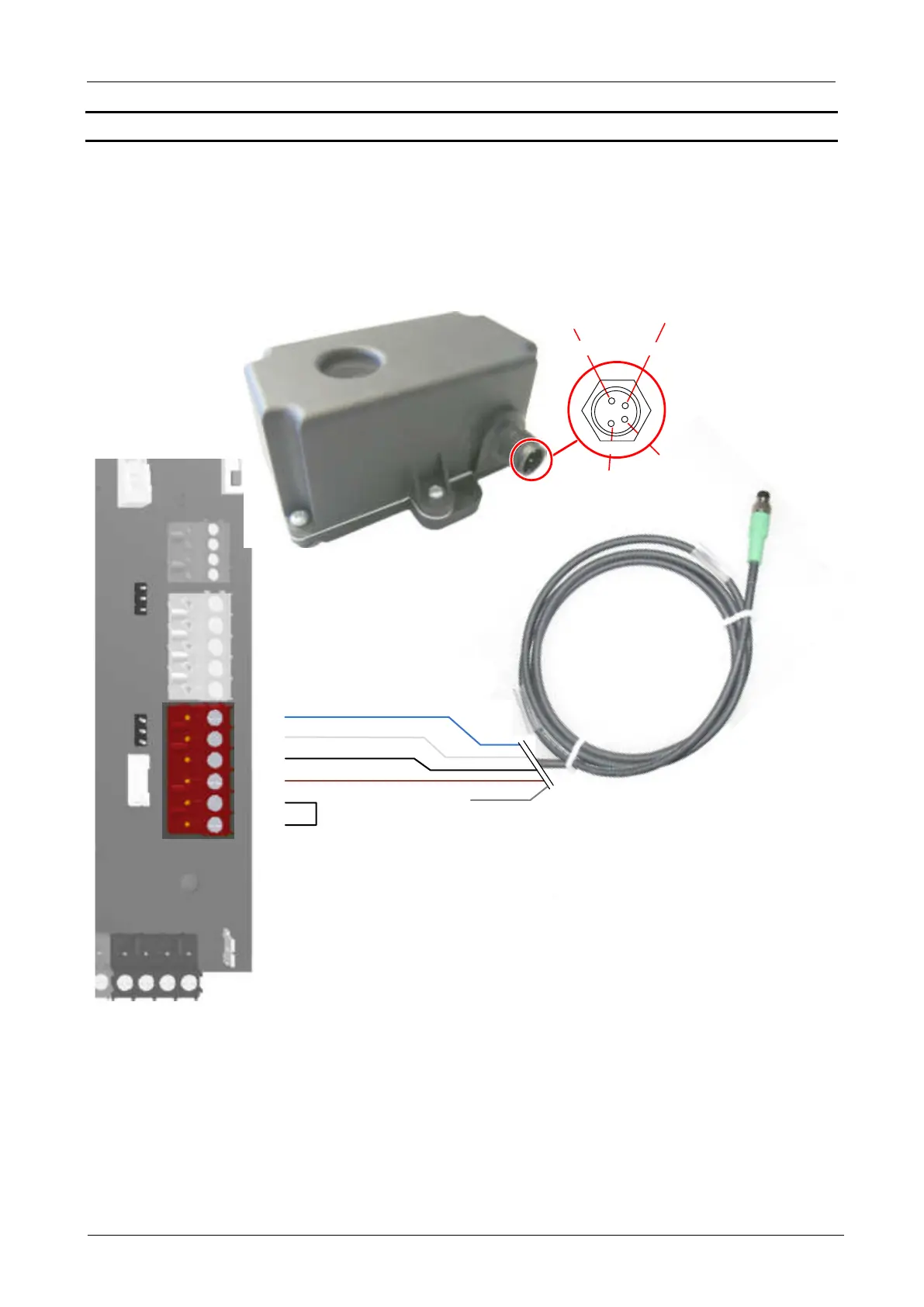

Figure 23: Absolute encoder TST PD
