6.5 Expansion card RFUxK
Expansion board TST RFUxK can optionally be plugged in and has additional 6 inputs and 6 relay
outputs and one digital output, with freely programmable operation. In addition, a 2-channel
inductive loop detector and an annual timer switch as well as an additional RS-485 interface are
included, e.g. for connection to a partner controller.

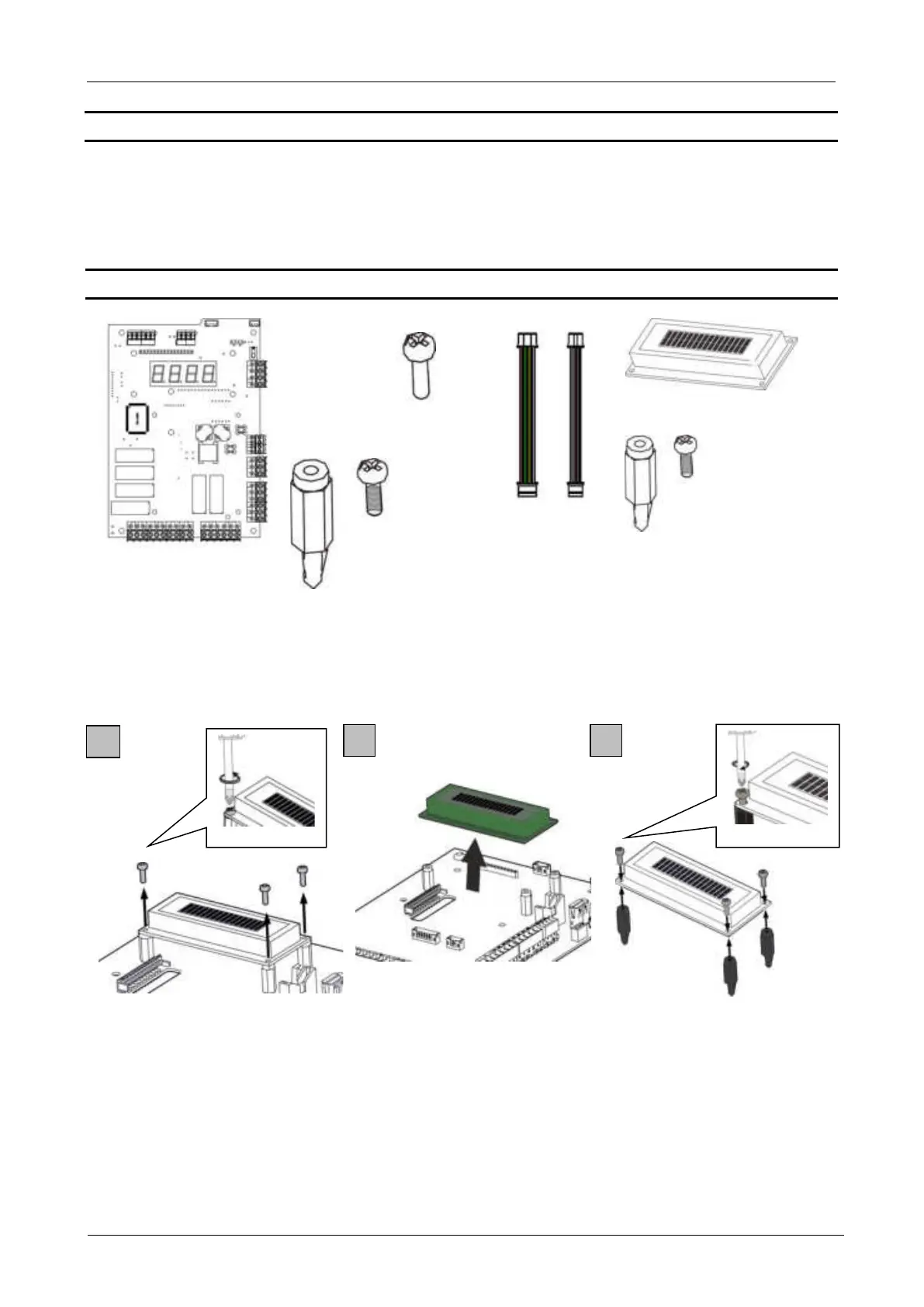

6.5.1 Mounting and connecting the display and TST RFUxK
TST RFUxK àTST FUF2/FU3F
Display àTST RFUxK
1
2
3
3x
3x
4x
3x
Steel (ST)
1x
Polyamide
(PA)
3x
Steel
3x
1x 1x
