TST
Assembly instructions
FUF2 / FU3F-A/-C/-F
FEIG ELECTRONIC GmbH
Page 63 of 114
TST_FUxF-A-C-F_Montageanleitung_EN_15

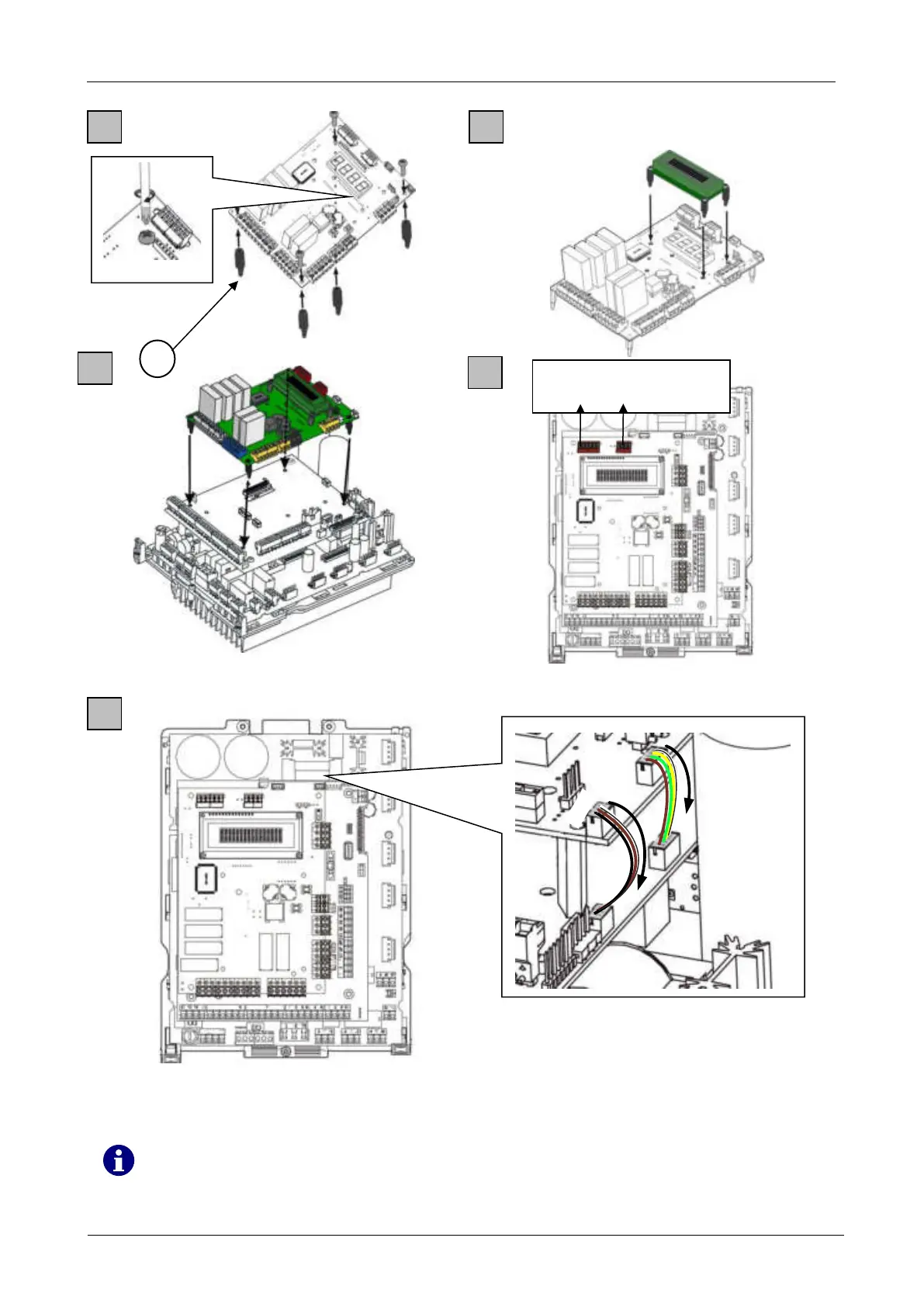

Figure 38: Changing the display and mounting the TST RFUxK expansion card using the TST
FU3F as an example
Activate the expansion board by setting the parameter P.800 to 5.
5
4
4x
PA
6
7
Plug in terminals 385 -
390 upright!
X
40
X
3
0
a
X
701
X702
8
