5.3.1 Connection of an optical safety edge
Spiral cable
Junction
box
41
42
Slack rope
switch
optional slip
door
brown
white
Receiver
Transmitter
green
45
44
43
42
41

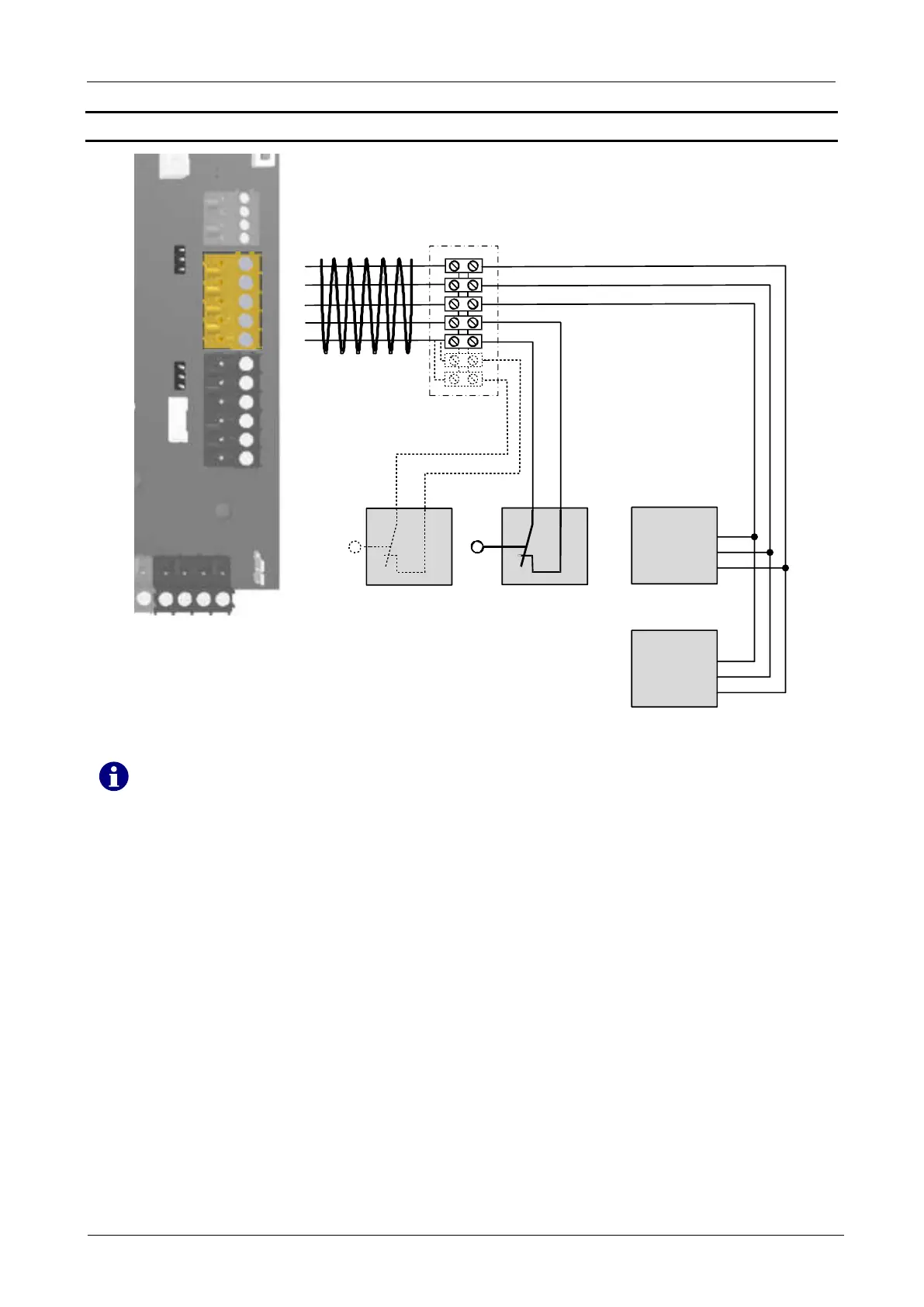

Figure 15: Connection of an optical safety edge
If the safety edge type was not automatically detected, the optical safety edge on this
input can be activated via parameter P.460 = 5.
