5.6.5 Mechanical limit switches
Thermo
switch
Emergency
limit switch
CLOSE
Emergency
limit switch
OPEN
Crank switch
Emergency stop circuit
Emergency stop 2
Emergency stop 2
36*
35*
34*
33*
32*
31*
66 65 64 63 62 61
limit switch open– input 8
+24 V
GND
limit switch close – input 9
86 85 84 83 82 81
pre limit switch open – input 6
+24 V
GND
pre limit switch close – input 7
+24 V
GND

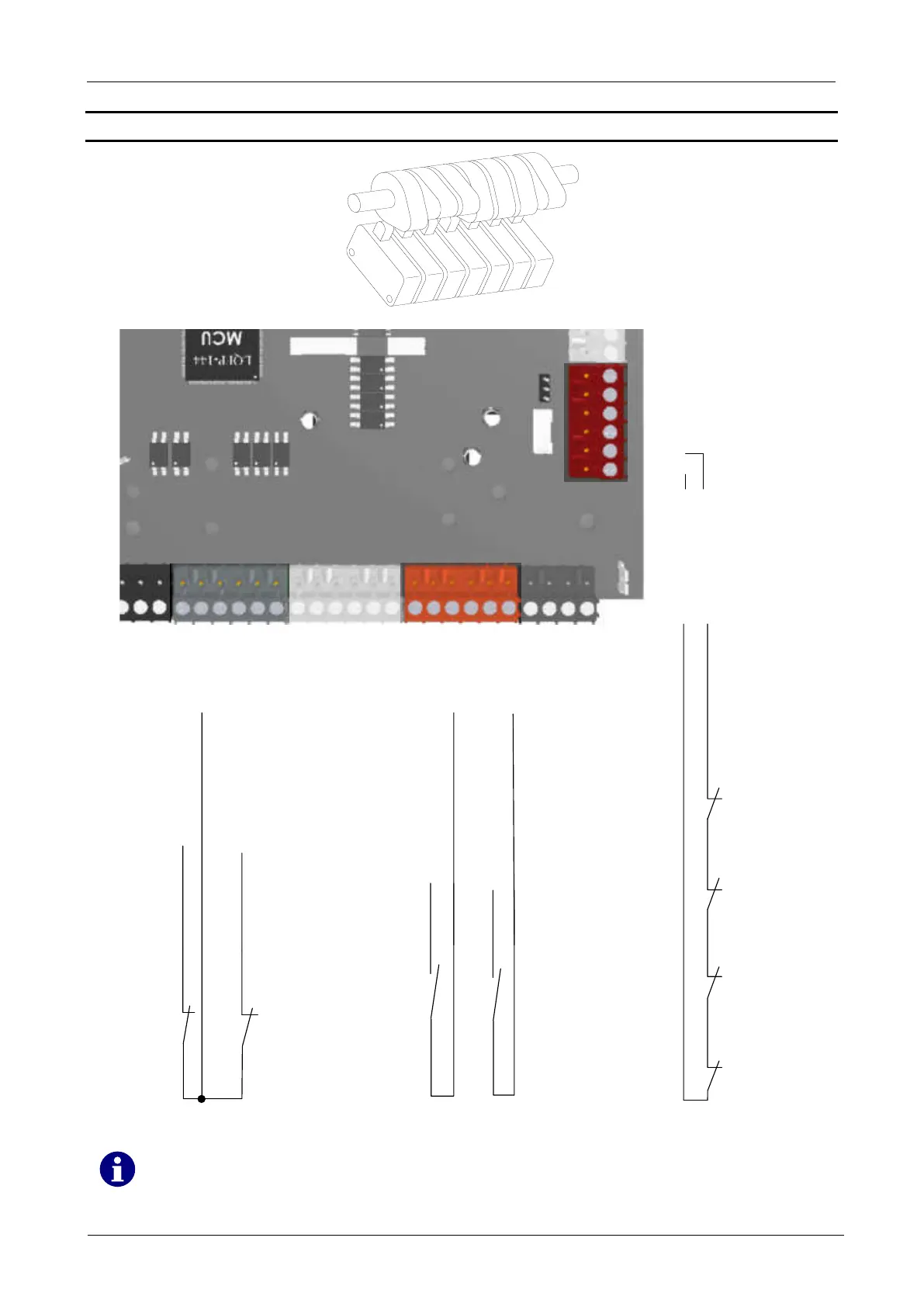

Figure 28: Connecting cam switches
Alternately, the pre-limit switches can also be connected as normally closed contacts.
