Assembly instructions
FUZ2 -A/-B/-C/-CX/-G/-L
FEIG ELECTRONIC GmbH
Page 21 of 96
TST_FUZ2-A-B-C-CX-G-L_Montageanleitung_EN_22.docx
5 Housing variants
There are two different housing options available for different device options.
5.1 Housing variant 1 / small housing
This type of housing is used for controller types TST FUZ2-A, TST FUZ2-B, and -CX.
The expansion card TST RFUxK can be used in this housing only in combination with
controller type TST FUZ2-B.
Min. 100mm
Min. 100mm
1x230VAC,
N, PE
Abstandhalter

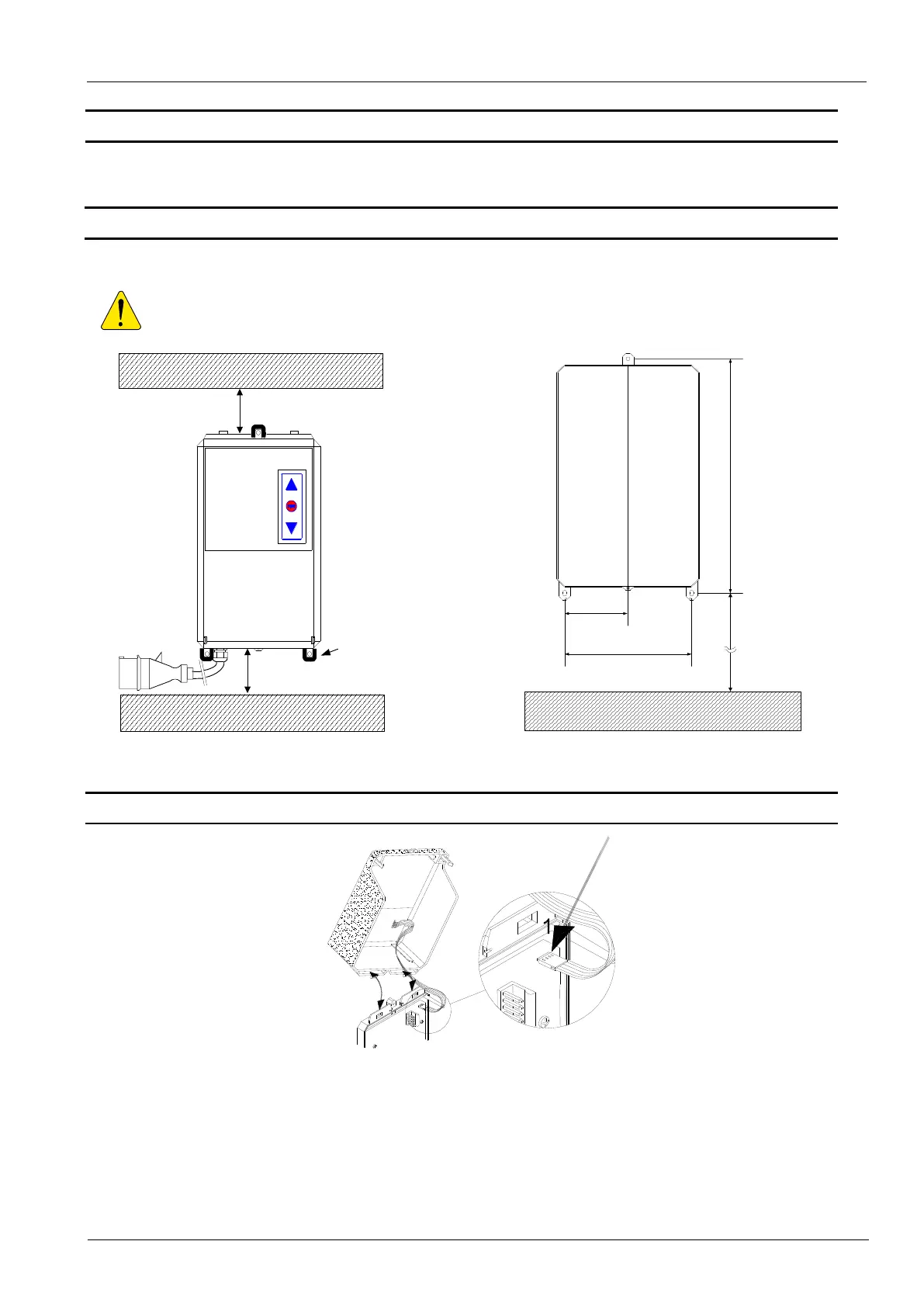

Figure 4: Installation in small housing
300
160
80
Floor
Ca. 1300
Figure 5: Drilling template small housing
5.1.1 Installation position of the cover
Figure 6: Installation position of the cover
