TST
Assembly instructions
FUZ2 -A/-B/-C/-CX/-G/-L
FEIG ELECTRONIC GmbH
Page 35 of 96
TST_FUZ2-A-B-C-CX-G-
L_Montageanleitung_EN_22.docx
Maximum connection diameters for the terminals on
printed circuit boards:
Single wire (rigid)
Fine-stranded
(with/without
ferrule)
Max. tightening torque
[NM]
Motor terminals
2.5
2.5
0.5
Mains connection
2.5
1.5
0.5
screw terminals (catch 5 mm)
2.5
1.5
0.5
plug in terminals (catch 5 mm)
1.5
1.0
0.4
plug in terminals (catch 3.5 mm)
1.5
1.0
0.25
Check the electrical connection again before starting
the controller. Incorrect connections may damage the
unit.
The illustrations are exemplary. Steel and stainless steel housings may differ.
6.1 Power supply voltage without main switch
PE
N
L
CEE plug 3 poles,
blue
Fuse 16A / K- Type
L
N

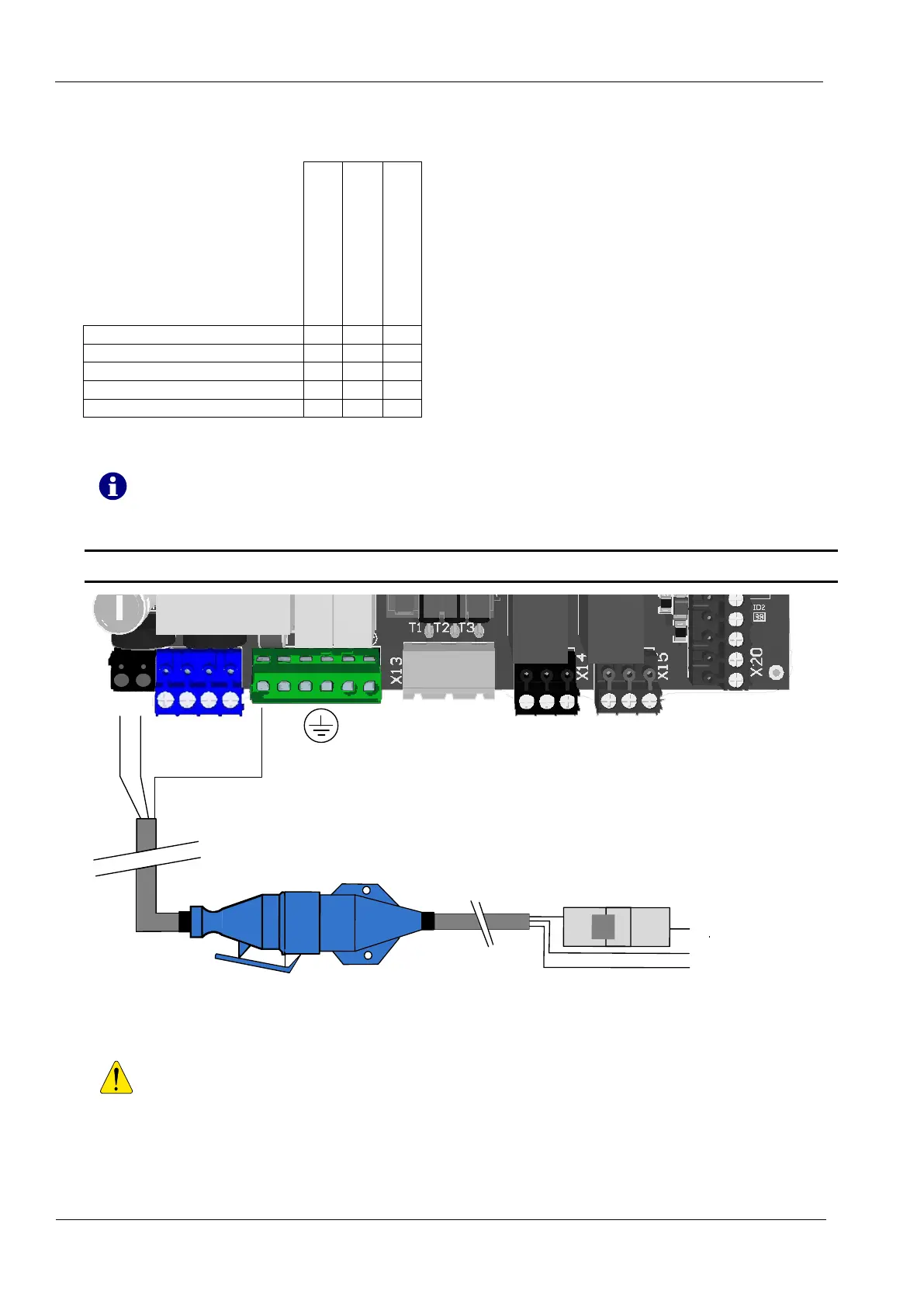

Figure 15: Connecting the power cable
The power plug must be visible and accessible from the controller.
