Feig Electronic TST FUZ2-CX User Manual

FUZ2 -A/-B/-C/-CX/-G/-L
Assembly instructions
TST
FEIG ELECTRONIC GmbH
Page 48 of 96
TST_FUZ2-A-B-C-CX-G-L_Montageanleitung_EN_22.docx
6.7.4 Mechanical limit switches
Thermo
switch
Emergency
limit switch
CLOSE
Emergency
limit switch
OPEN
Crank switch
Emergency stop circuit
86 - +24 V
85 - Input 7: pre limit switch door close
84 - GND
83 - +24 V
82 - Input 6: pre limit switch door open
81 - GND
66
65
64 - Input 9: limit switch door CLOSE
63 - GND
62 - +24 V
61 - Input 8: limit switch door OPEN
36*
35*
34*
33*
32* - E-stop 2
31* - E-stop 2

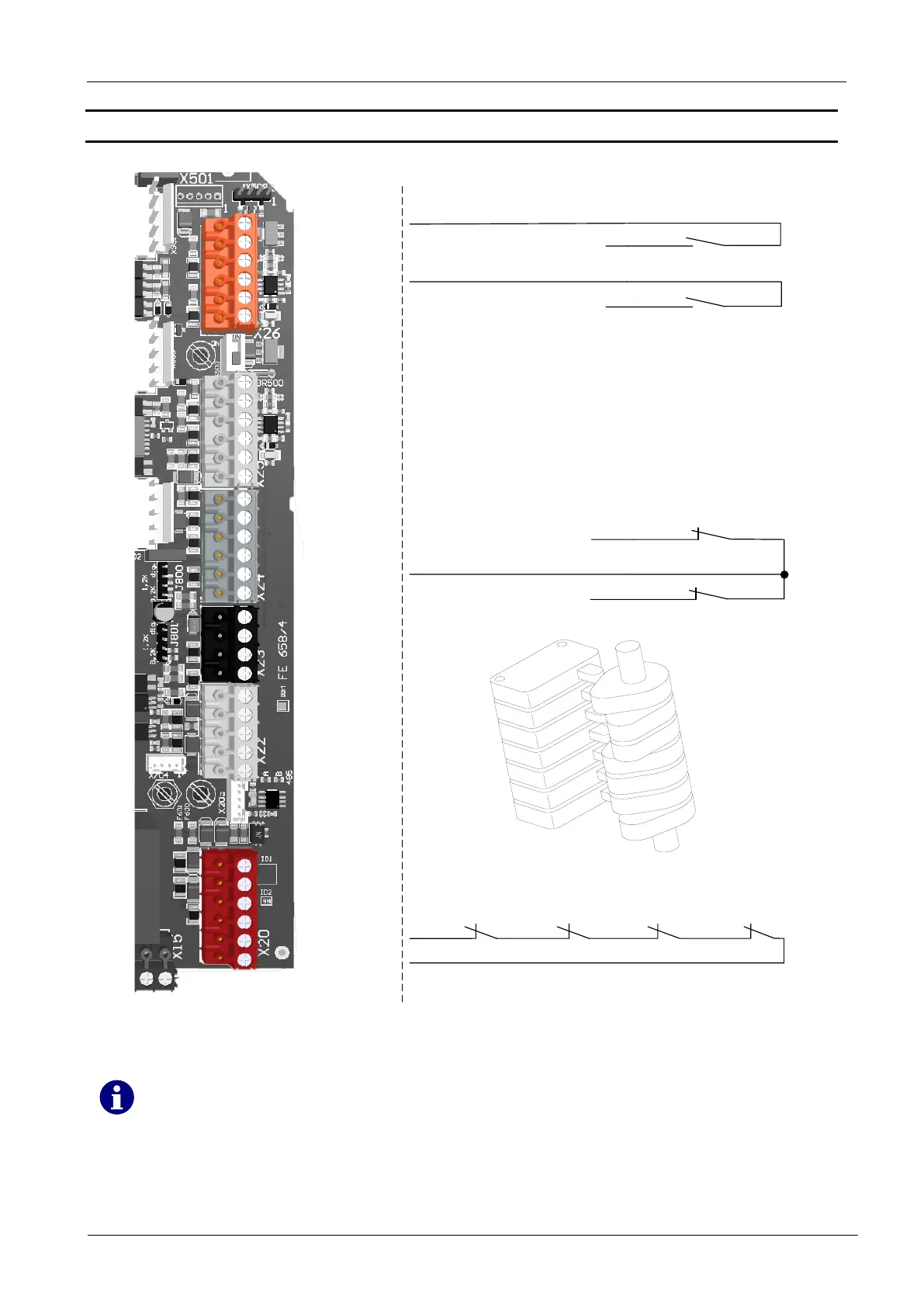

Figure 28: Connecting cam switches
Alternately, the pre-limit switches can also be connected as normally closed contacts.
