Feig Electronic TST FUZ2-CX User Manual

FUZ2 -A/-B/-C/-CX/-G/-L
Assembly instructions
TST
FEIG ELECTRONIC GmbH
Page 44 of 96
TST_FUZ2-A-B-C-CX-G-L_Montageanleitung_EN_22.docx
6.6.2 Connection of the TST LGB
76 - +24 V
75 - Input 5:
74 - GND
73 - +24 V
72 - Input 4:
71 - GND
66 - Output 15:
65 - Input 10:
64 - Input 9:
63 - GND
62 - +24 V
61 - Input 8:
54 - Input 3:
53 - Input 2:
52 - Input 1:
51 - +24 V
45 - +12 V
44 - GND
43 - Safety edge
42 - E-stop 1
41 - E-tstop 1
36* - GND
35* - Channel B
34* - Channel A
33* - +12 V
32* - E-stop 2
31* - E-stop 2
Pin 1 - brown
Pin 2 - white
Pin 3 - blue
Pin 4 - black
Pin 1 - white
Pin 2 - brown
Pin 3 - yellow
Pin 4 - green
TST LGB
Receiver
Pin 5 - gray
Pin 6 - pink
Pin 7 - blue
Pin 8 - red
+24 V DC
GND
RS485 A
RS485 B
OUT2 – Photo eye
OUT1- Safety edge
TST LGB
Transmitter
M12 /4 pole
Female
M12 /4 pole
Male
M12 /8 pole
Female
M12 /8 pole
Male
IMPORTANT!
These wires connect
with each other

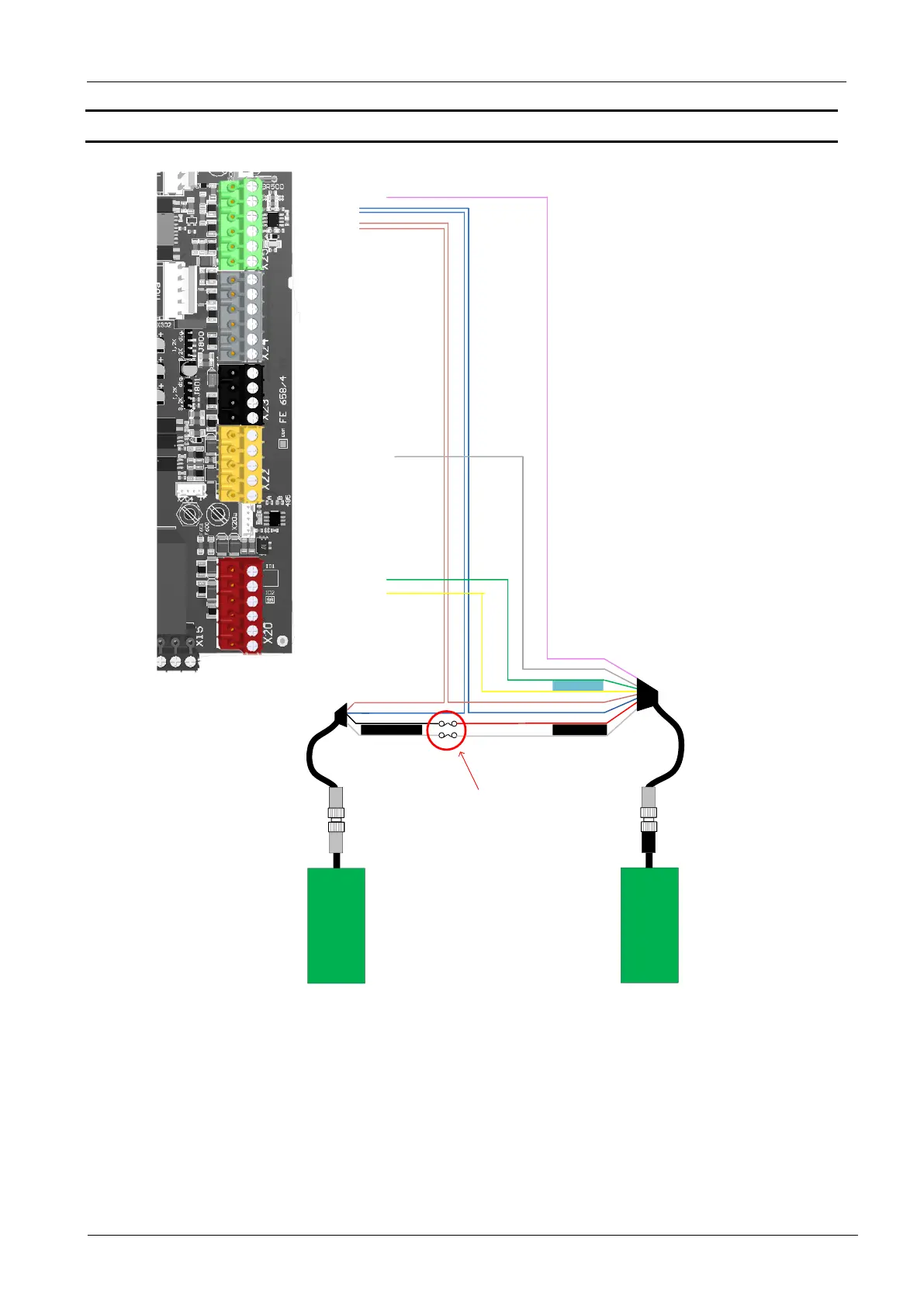

Figure 24: Connection of the TST LGB
