Feig Electronic TST FUZ2-CX User Manual

TST
Assembly instructions
FUZ2 -A/-B/-C/-CX/-G/-L
FEIG ELECTRONIC GmbH
Page 41 of 96
TST_FUZ2-A-B-C-CX-G-
L_Montageanleitung_EN_22.docx
6.5 Safety edge at the 2nd integrated evaluation (input 10)
The evaluation / input is not available for Control variants TST FUZ2-A!
Various types of safety edges can be connected, for example:
• Dynamical optical system
• Electrical safety edge with 1.2 kΩ or 8.2 kΩ terminating resistor.
• Digital input
Use of additional types of safety edges is possible. Please contact the door manufacturer in this respect.
6.5.1 Optical safety edge
66
65
64
63
62
61
brown
white
Jumper J 801 is located to
the left and behind
terminal 51 - 52
J801 = 1-2
8,2K
1,2K
Receiver
Transmitter
green
4
digital
Parameter P.5A2 = 4
3
2
1

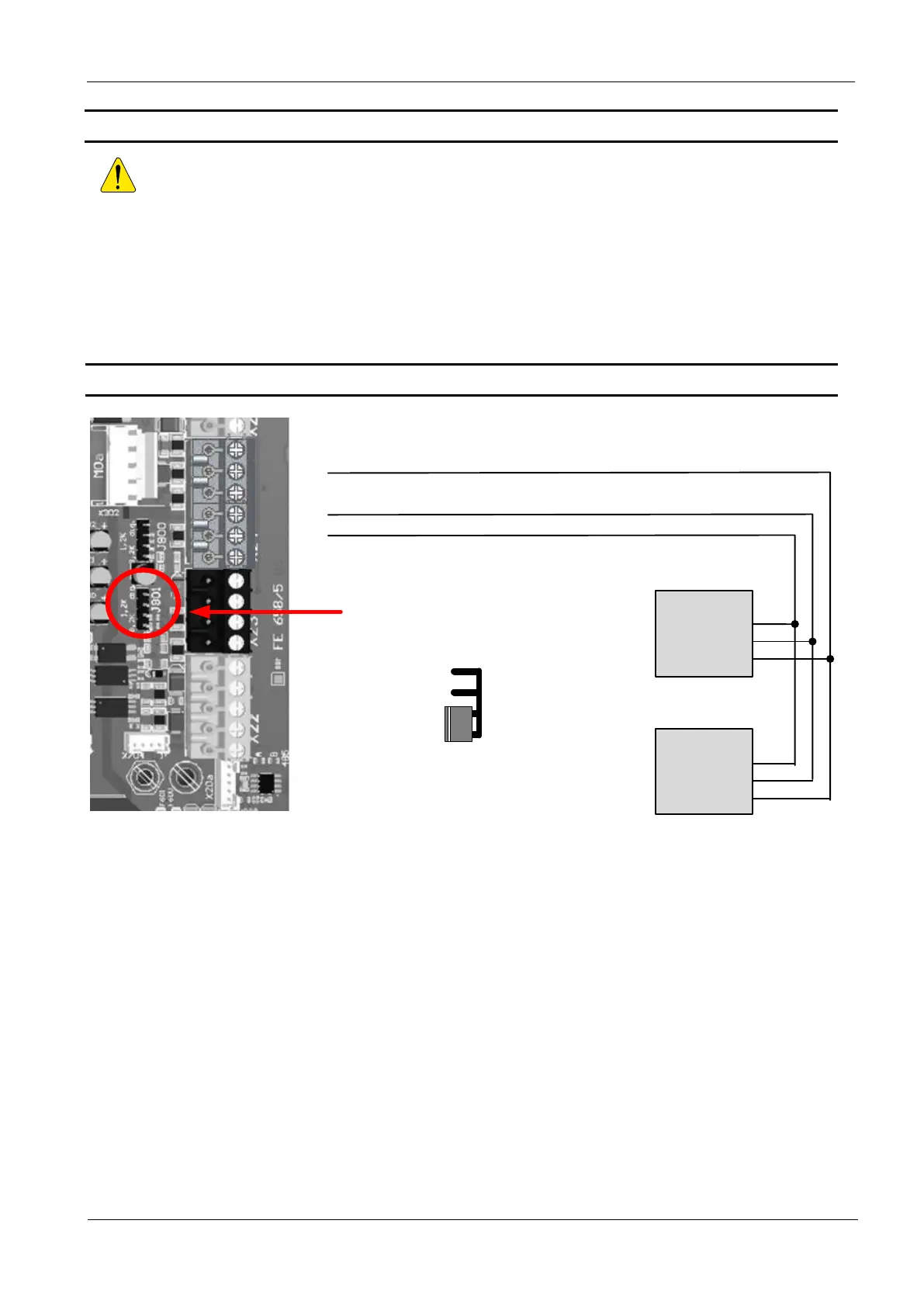

Figure 20: Connection of an optical safety edge
