FUZ2 -A/-B/-C/-CX/-G/-L
Assembly instructions
TST
FEIG ELECTRONIC GmbH
Page 46 of 96
TST_FUZ2-A-B-C-CX-G-L_Montageanleitung_EN_22.docx
6.7.2 Absolute encoder TST PD
Absolute encoder TST PD is a multi-turn encoder. Due to a selectable transmission ratio, this encoder can
be used for both very fast (e.g. motor shaft) as well as very slow shafts (e.g. door shaft). The driving shaft
may execute more than a single revolution.
This encoder may also be equipped with the WICAB radio system to transfer the status of the safety edge
without a spiral cable. For this purpose, the stationary unit TST PD FSAS and the mobile unit TST FSAM or
TST FSBM are required.
+ 12 V
GND
RS485 B
RS485 A
1
2
3
4
M8 plug with
4 poles
Wire 1: brown
Wire 3: blue
Wire 2: white
M8 4-pole
socket
36*
Min. IP65, gold
plated contacts
Wire 4: black
shield / PE
M8 plug with
4 poles
35*
34*
33*
32*
31*

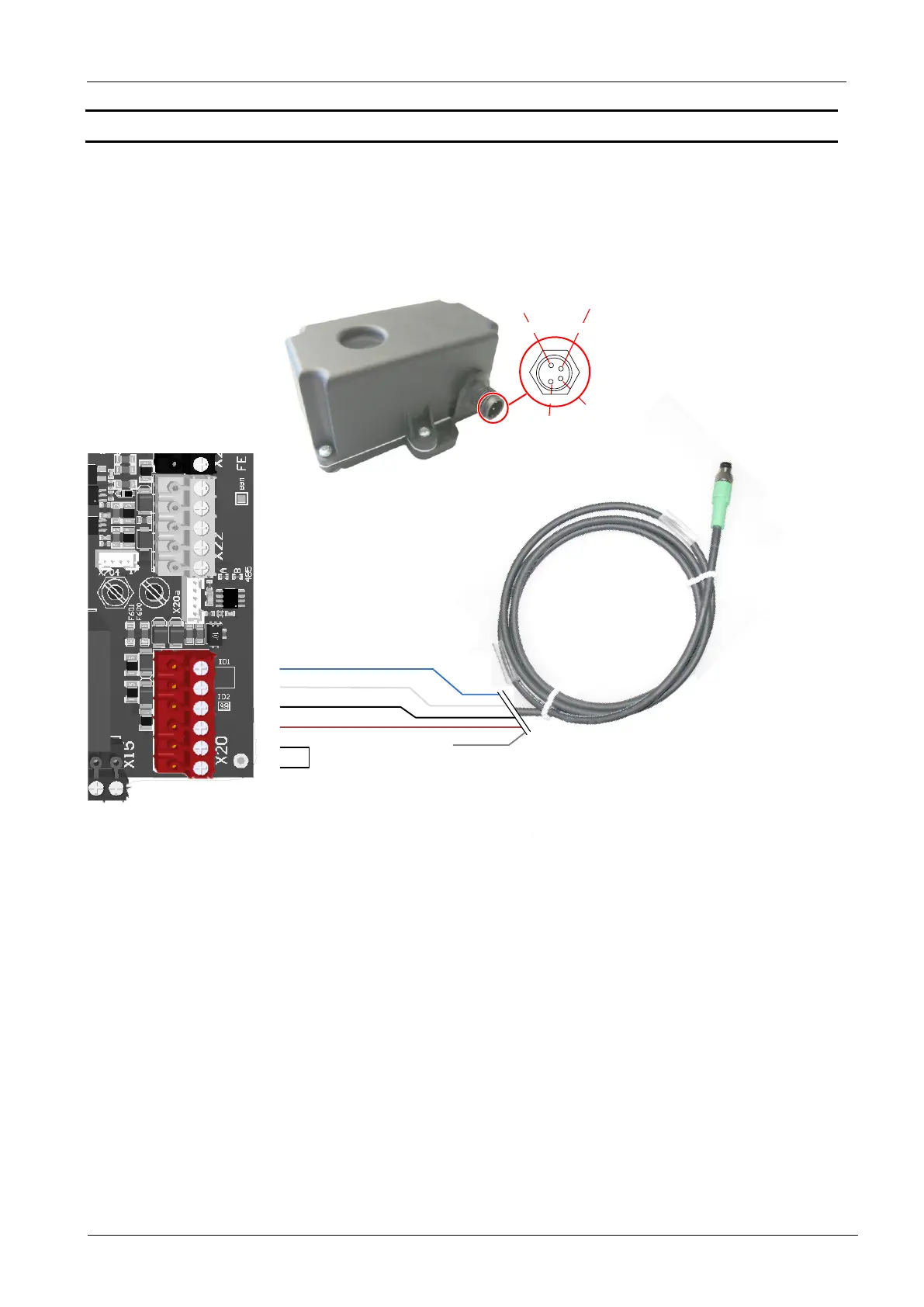

Figure 26: Absolute encoder TST PD
