Feig Electronic TST FUZ2-CX User Manual

FUZ2 -A/-B/-C/-CX/-G/-L
Assembly instructions
TST
FEIG ELECTRONIC GmbH
Page 72 of 96
TST_FUZ2-A-B-C-CX-G-L_Montageanleitung_EN_22.docx
11.2 Closing of the door
Limit switch OPEN
P.230
Start ramp r5
P.351 / P.352
Break ramp r6
P.361 / P.362
Closing
Pre limit switch CLOSE
P.222
Limit switch CLOSE
Stop
ramp ru
Creep spead F6
P.360
Max. travel speed F5
P.350

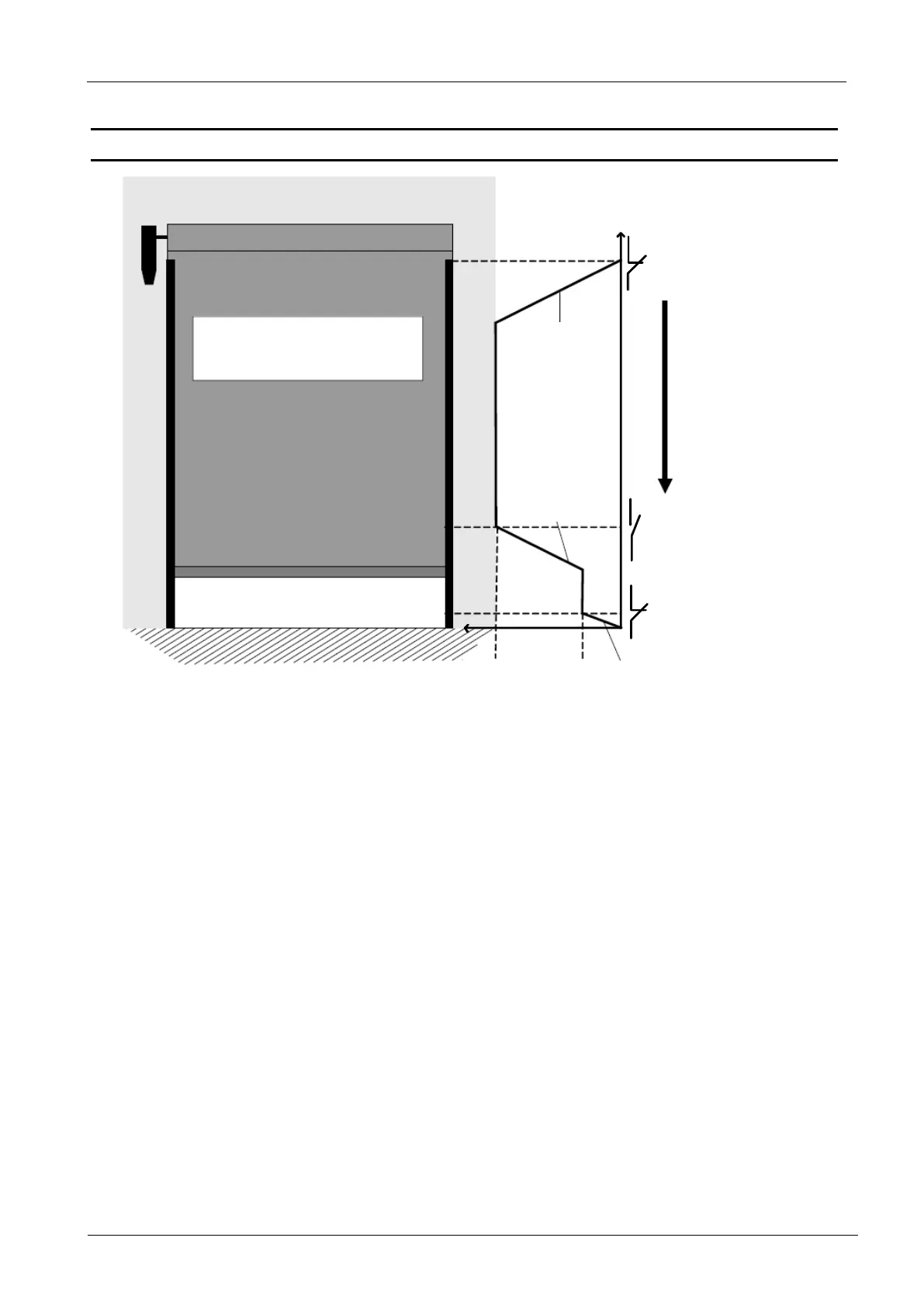

Figure 47: Closing using the frequency converter
The frequency converter starts door movement with start ramp "r5". It accelerates from 0 Hz to the max.
travel speed.
The door is moved at the max. travel speed until the pre-limit switch for limit position CLOSE is reached.
At this point it reduces the speed of the door to creep speed using ramp "r6”. The door now moves at
creep speed until the limit switch CLOSE is reached.
At this point the door is stopped (ru).
