Feig Electronic TST FUZ2-CX User Manual

TST
Assembly instructions
FUZ2 -A/-B/-C/-CX/-G/-L
FEIG ELECTRONIC GmbH
Page 47 of 96
TST_FUZ2-A-B-C-CX-G-
L_Montageanleitung_EN_22.docx
6.7.3 Absolute encoder DES
Example of use!
Please also observe the information in chapter 3 Safety functions in accordance with EN
12453:2017 on page 14.
Wire 1: Emergency stop
Wire 3: GND
Wire 6: 12 VDC
Wire 2: Channel B
31*
à Terminal 31
à Terminal 35
à Terminal 36
Wire 4: Channel A
à Terminal 34
Wire 5: Emergency stop
à Terminal 32
à Terminal 33
32*
33*
34*
35*
36*
1
2
3
4
5
6

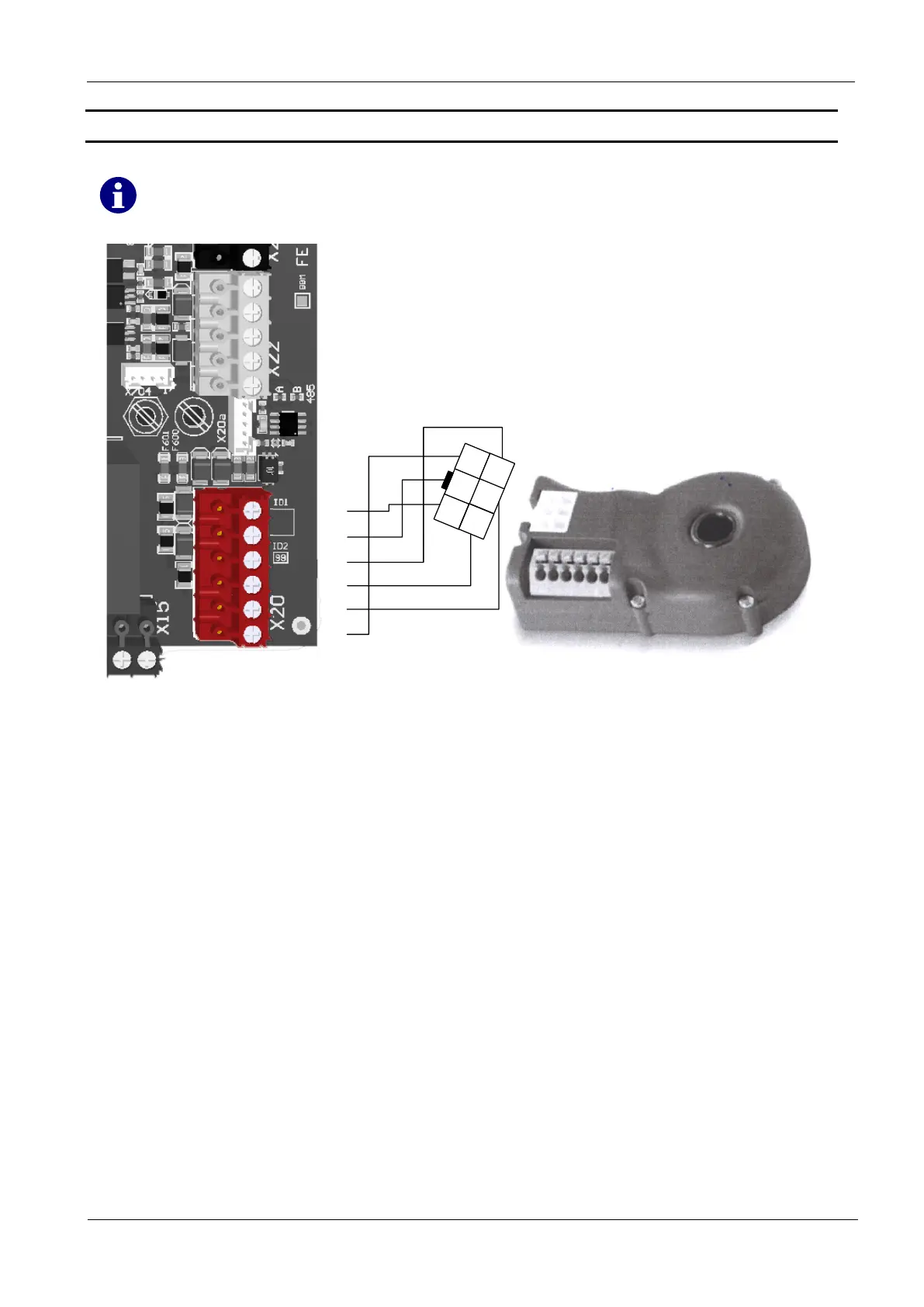

Figure 27: Connection of absolute encoder DES
