5.3 Device components

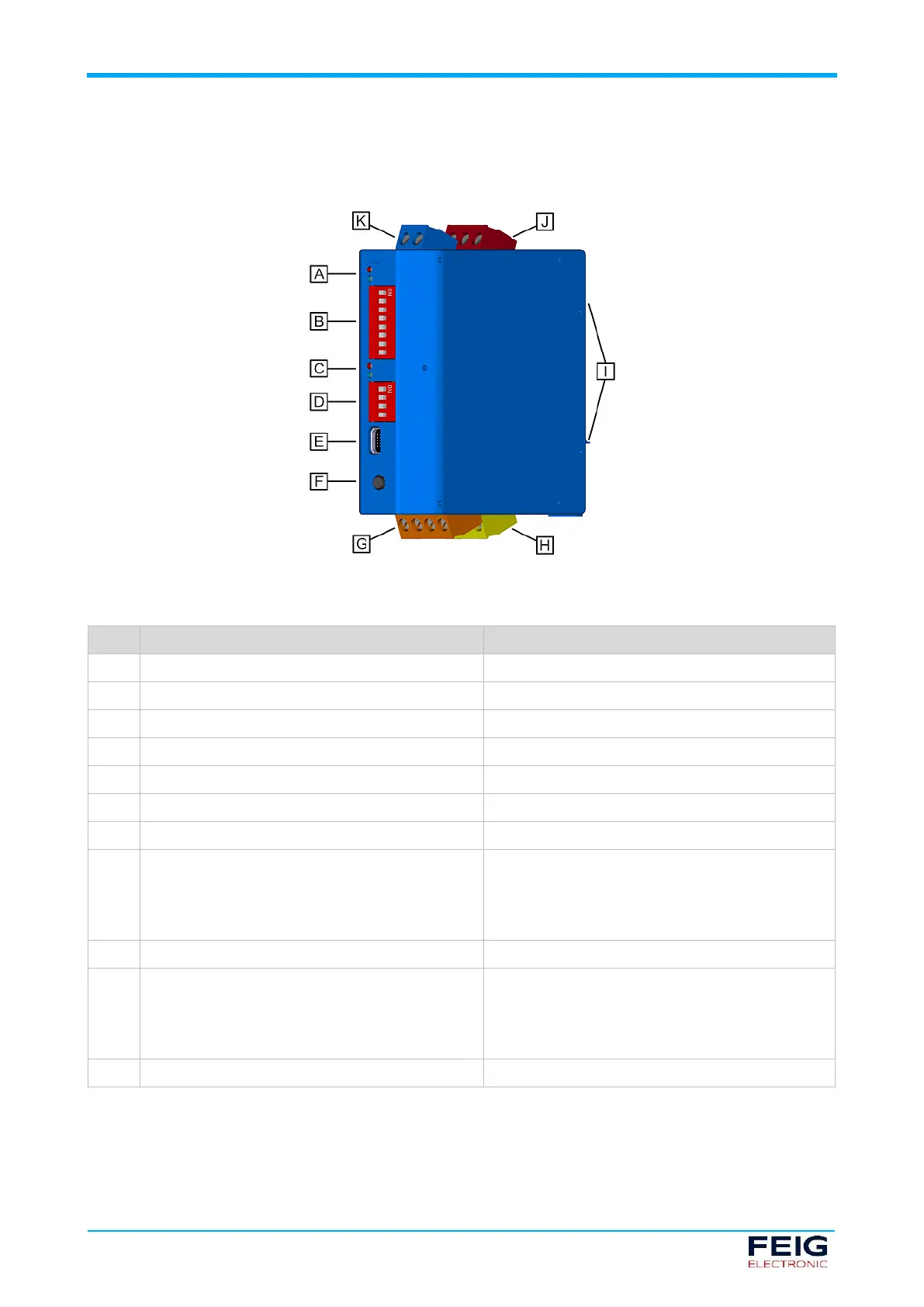

Fig. 3: Verkehrsdetektor VEK MNH
Index
Component
Description
A
Loop channel LEDs 1 (red + blue)
Status indicators for the loops and the detector
B
DIP switch 1
Basic settings for the detector
C
Loop channel LEDs 2 (red + blue)
Status indicators for the loops and the detector
D
DIP switch 2 (MNH2 variant)
Basic settings for the detector
E
USB connection
PC interface for configuration and diagnostics
F
Reset button
Factory settings or fresh adjustment
G
Loop inputs (orange)
Connections for induction loops
H
Output 1 terminal block:
• Relay output 1 (yellow, R24 variant)
• Open collector output 1 (green, O24
variant)
Signal outputs for controller
I
Mounting bracket
Mounting device for TS35 DIN rail
J
Output 2 terminal block:
• Relay output 2 (red, R24 variant)
• Open collector output 2 (green, O24
variant)
Signal outputs for controller
K
AC/DC connection (blue)
Connections for power supply
Tab. 5: VEK MNH Traffic Detector
