VEK MNH
Description of settings
VEK MNH Operating Manual v1.3 en
42 | 56
DIP
Detector Tool
Output time behaviour
0 – 25,500 ms,  100 ms
Switch-on delay (factory setting: 0 ms)
0 – 25,500 ms,  100 ms
Switch-off delay (factory setting: 0 ms)
0 – 25,500 ms,  100 ms
Minimum signal duration (factory setting: 200 ms)
Tab. 27: Duration of output signal

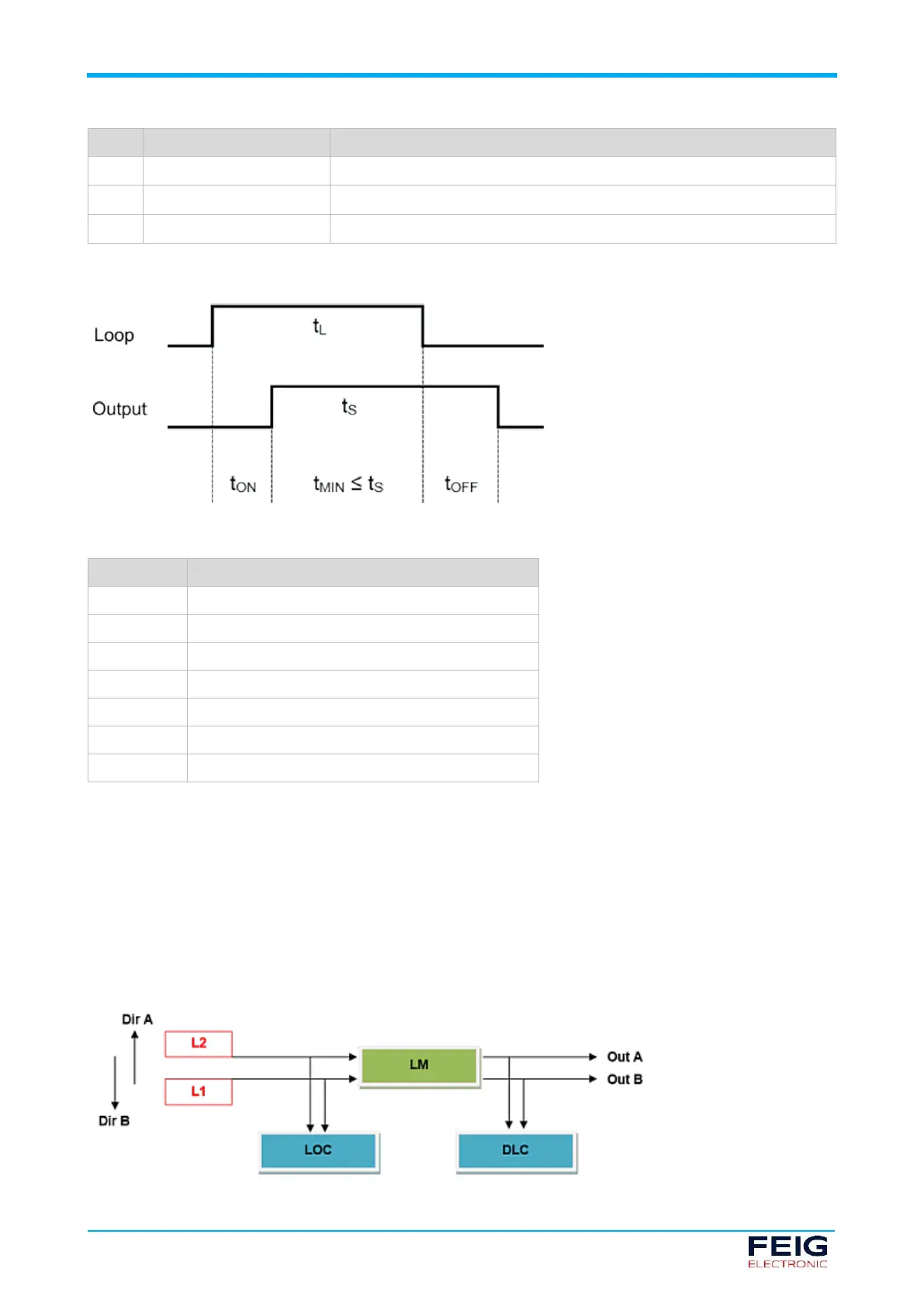

Fig. 11: Output signal time response
Variable
Description
Loop
Loop coverage
Output
Output signal
t
L
Loop coverage duration
t
S
Output signal duration
t
MIN
Minimum signal duration
t
ON
Switch-on delay
t
OFF
Switch-off delay
Tab. 28: Output times legend
11.11 Setting direction detection (dual-channel variants)
Complex evaluation algorithms are integrated into the dual-channel detector for direction-dependent
recording of vehicles over double loops. The direction logic generates logical output signals that are given
out over the outputs depending on the setting. Parallel to this, the detector autonomously counts the logic
signals.
Fig. 12: Direction detection principle
