Description of settings
VEK MNH Operating Manual v1.3 en
50 | 56
11.12.9 Direction Logic „Parking bay“
This direction logic is used where for short entrances and exits. Interference to counting due to cross traffic
on loop 1 is disabled in this logic.This logic suppresses the impairment of counting by cross traffic on loop 1.
It is therefore irrelevant whether loop 1 is laid in the adjoining lane or the manoeuvring area.
WARNING
Positioning of the loops
The positioning of the loops is dependent on the direction in which congestion is anticipated. No tailbacks
are permitted to occur in travel direction 1 2. In travel direction 2 1, vehicles will also be correctly
counted in congestion, and in this situation the gap between vehicles must release one loop at a time.

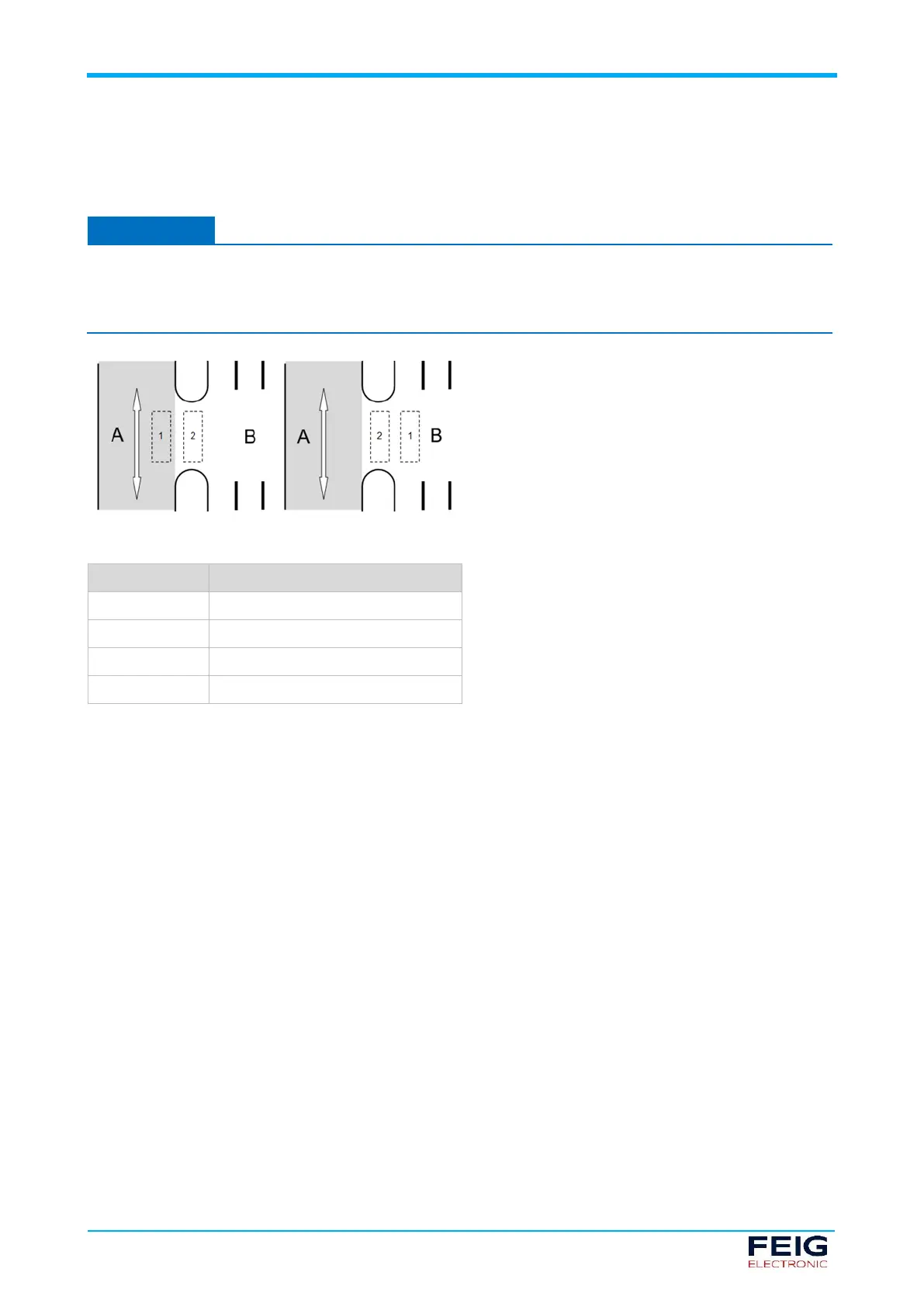

Fig. 21: Parking bay Direction Logic
Symbol
Description
A
passageway
B
Car park
1
Loop 1
2
Loop 2
Tab. 34: Symbols for parking bay
Logic for travel direction 1 2
The counting pulse is triggered as soon as both loops have been completely crossed
Correct counting with single vehicles
Correct counting also with manoeuvring
Congestion and queues are not permitted to occur in travel direction 1 -> 2!
Logic for travel direction 2 1
The counting pulse is triggered as soon as loop 2 is vacated in the direction of loop 1.
Correct counting also with cross traffic
Correct counting with queues
Correct counting also when a single vehicle is manoeuvring
No manoeuvring is permitted to take place in a queue!
