Description of connections
VEK MNH Operating Manual v1.3 en
22 | 56
7 Description of connections
In the following section, the connections for the inputs and outputs are described.
7.1 Power supply
The detector can be operated with direct or alternating current , according to the requirements for Safety
Extra-Low Voltages (SELV) of Protection Class III.
WARNING
Note the permitted power supply
Comply with the technical data and safety instructions!
Die Spannungsversorgung wird an den blauen Klemmenblock angeschlossen. The power supply is
connected to the blue terminal block.
VCC
Plus
GND
Ground

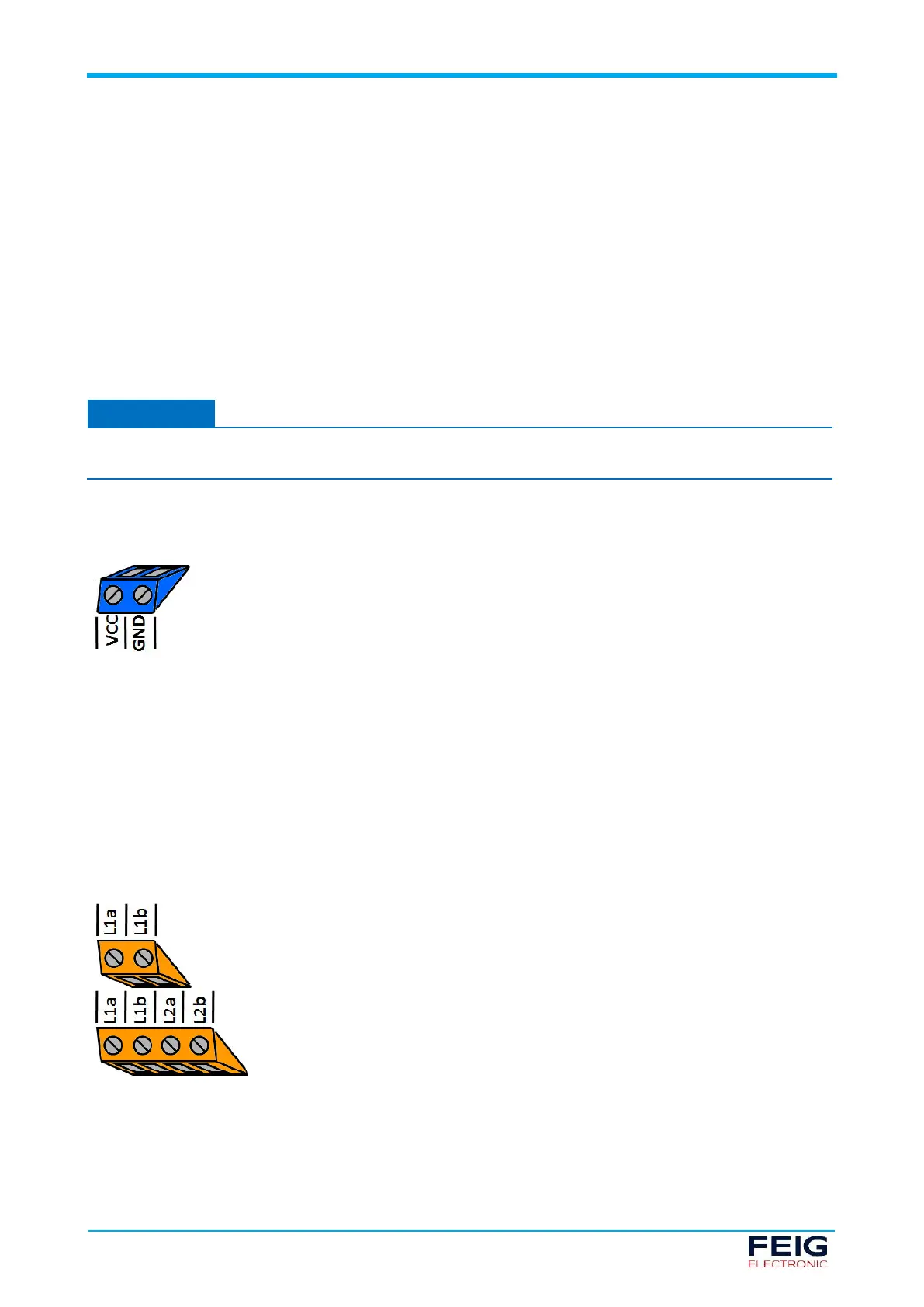

Fig. 4: Power supply connection (blue)
7.2 Loop inputs
Up to two analogue inputs for the induction loops on the terminal block are located on the underside of the
traffic detector. The terminal block is either 2-pole or 4-pole, depending on the product variant.
The induction loops are connected to the orange terminal blocks as shown in the illustration.
L1a
L1b
Induction loop channel 1 connections
L2a
L2b
Induction loop channel 2 connections
(dual-channel variants)
Fig. 5: Loop connections (orange)
