Festo VTEM - Page 14

14
Festo — VTEM — 2021-05f
Function
3.1.2.2 Valve
1

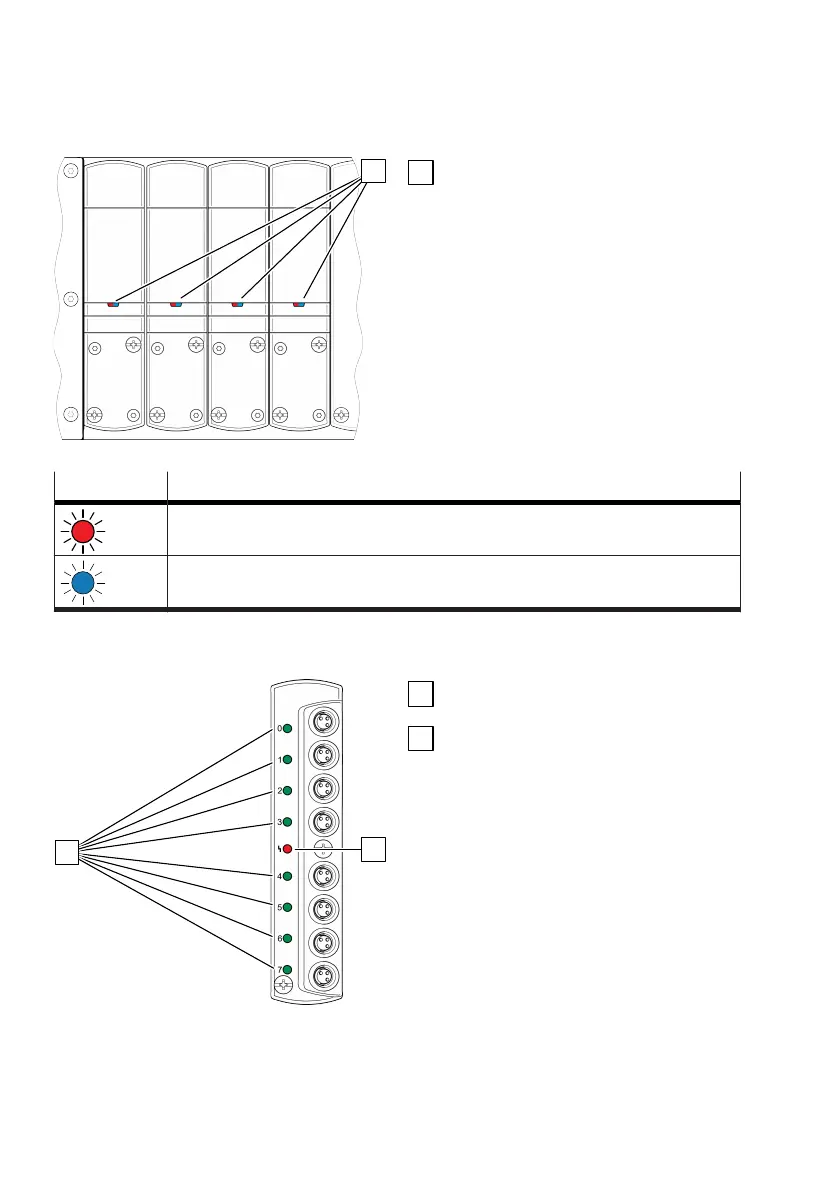

Fig. 10: LED display on valve
1
LED display on valve (red/blue)
LED Meaning
(red) Valve faults
(blue) Operation/Update
Tab. 7: LED display on valve
3.1.2.3
Input modules
1
2
Fig. 11:
LED displays of input modules
1
LED display for input status (green, only
digital input modules CTMM-S1-D-...)
2
LED display for module error (red)
