Function
Conventional valve type Switching
status
Replacement symbol
1)
Byte 0 Dec.
2 × 2/2 G (4) (2) Bit 7 Bit 6
Initial position: closed G G 0 0 0
B G 0 1 1
G B 1 0 2
B B 1 1 3
1) The symbol in this column replaces the full bridge in the circuit diagram for the valve VEVM and therefore represents the function in
the switched status of the valve with corresponding setpoint value (right columns).

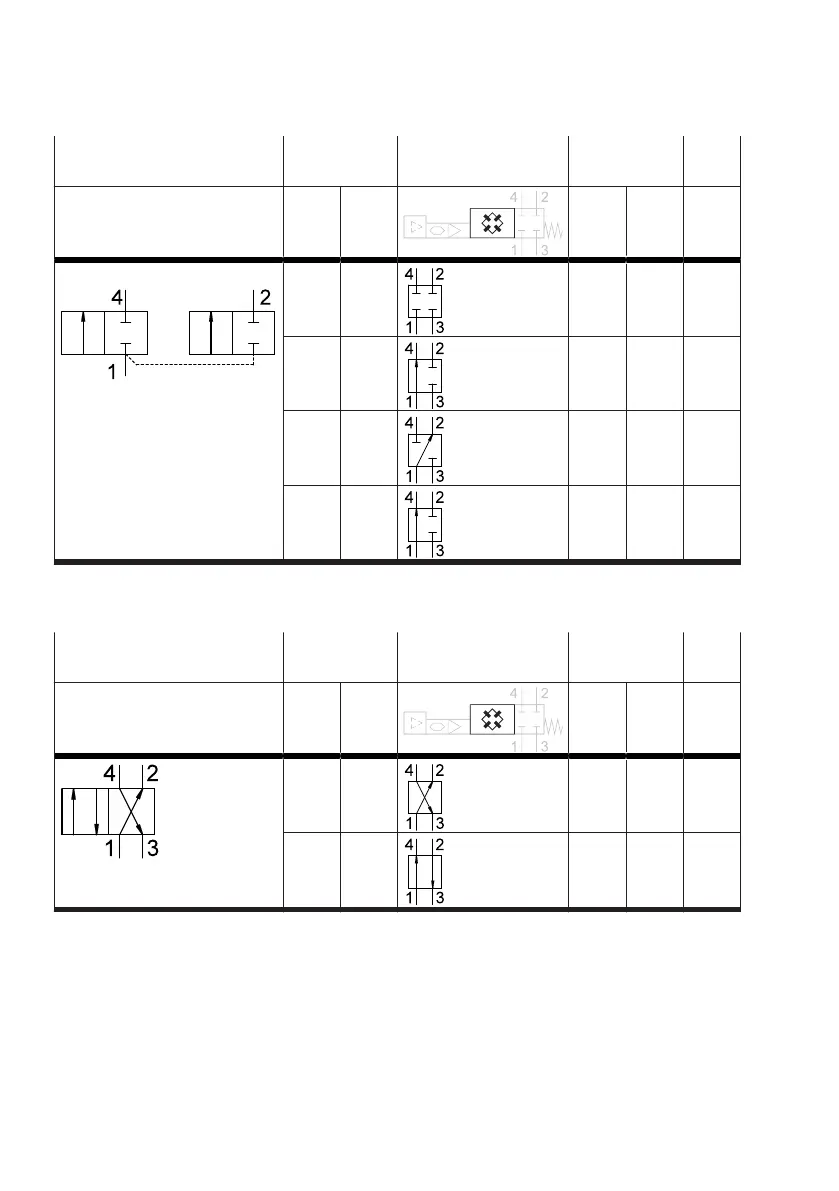

Tab. 91: Valve type 2 × 2/2 G
Conventional valve type Switching
status
Replacement symbol
1)
Byte 0 Dec.
4/2 mono (4) (2) Bit 7
2)
Bit 6
E B – 0 0
B E – 1 1
1) The symbol in this column replaces the full bridge in the circuit diagram for the valve VEVM and therefore represents the function in
the switched status of the valve with corresponding setpoint value (right columns).
2) This bit is ignored
Tab. 92: Valve type 4/2 mono
3.6.5.3 Setpoint value 1 and 2 (setpoint value 1, setpoint value 2)
The Motion App does not use any setpoint value specifications.
