Correct tooth contact.

Excessive contact on tooth flank:

move pinion out from

ring gear by reducing

thickness of shim.

Excessive contact on tooth toe:

move pinion out from

ring gear by reducing

thickness of shim.

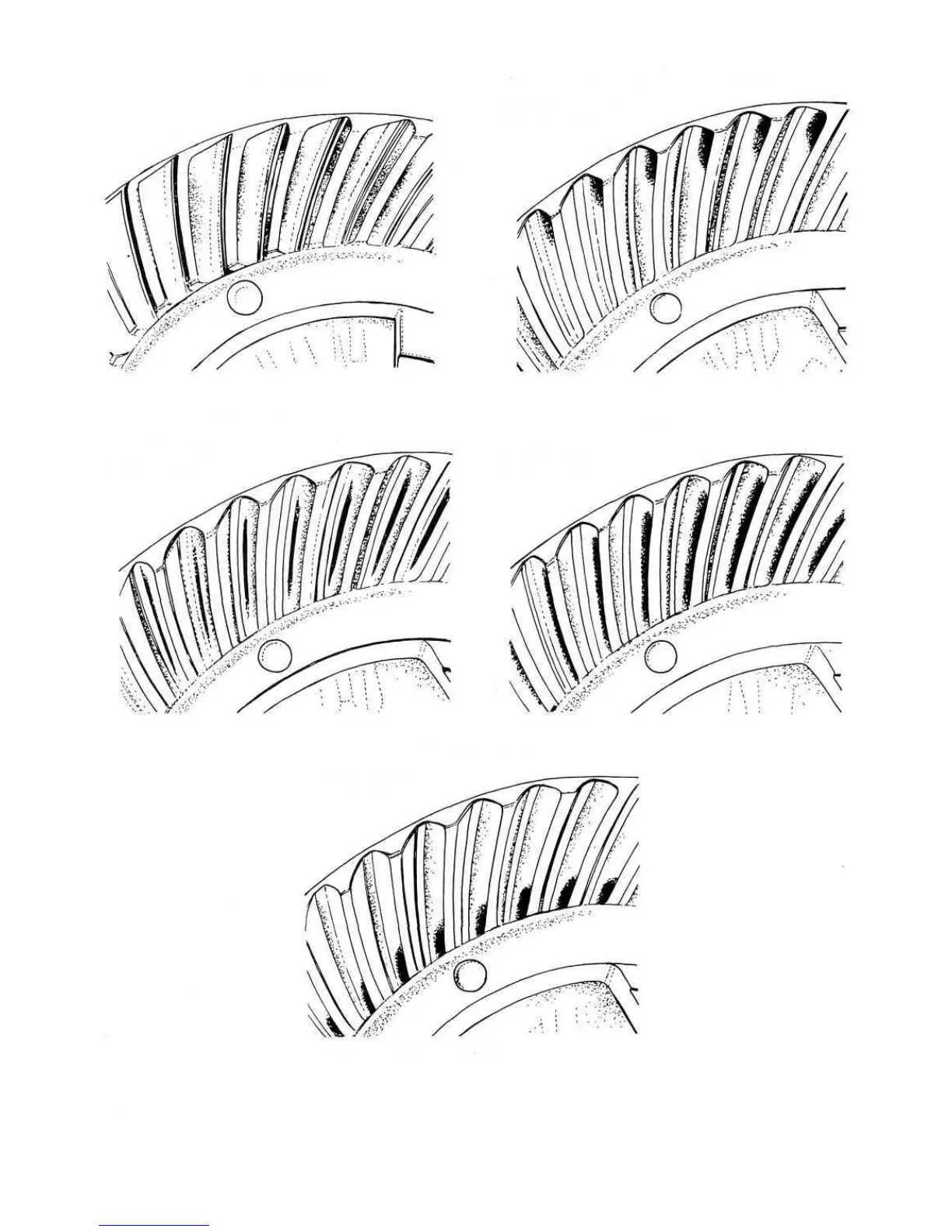

FIG 6 :16 Ring gear to pinion tooth contact

F500

move pinion in towards

ring gear by increasing

thickness of shim.

Excessive contact on tooth face:

move pinion in towards

ring gear by increasing

thickness of shim.

Excessive contact on tooth heel:
