KNOWING YOUR VEHICLE
50
WARNING To remove the rear seat,
first disconnect the SBR sensor
connection on both the right and left
sides, as shown in fig. 86. Turn the ring
(A) anticlockwise to disconnect the
connector.

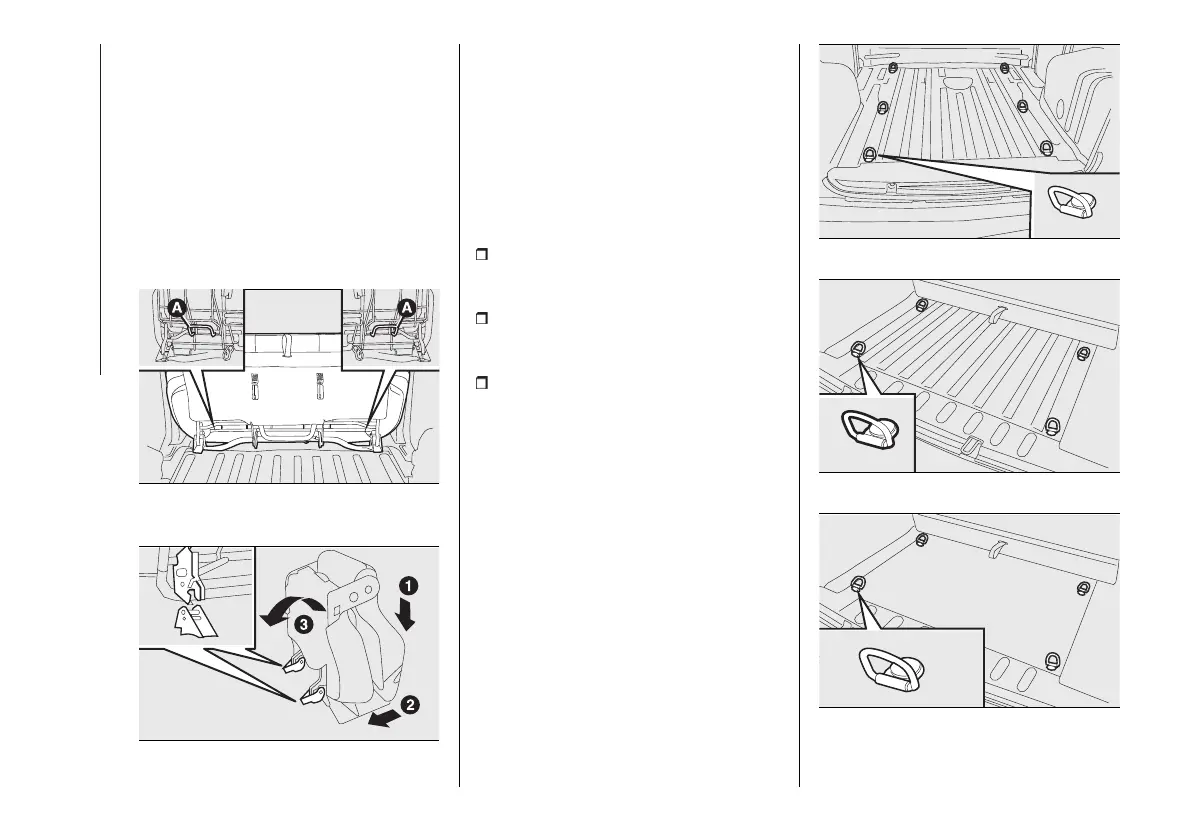

Operate the two brackets (A) fig. 88
under the side of the seat (one on each
side) after having tipped the rear seat
as previously described.
88 F0T0199
Repositioning the rear seat
89 F0T0302
WARNING When refitting the rear seat
after removal (for versions/markets
where provided), take care to
reconnect the SBR sensor correctly. If
not, the SBR system will not warn of
any unfastened seat belts on the rear
seats.
Proceed as follows:
check that the seat belt webbing is
correctly inserted in the corresponding
bracket;
take the cushion back to horizontal
position and check that it is secured
correctly;
tip back the backrest and check that
it is secured correctly.
A pictogram fig. 89 is located under
the split seat cushion showing how to
secure the seat back onto the brackets
screwed to the floor.
ANCHORING YOUR LOAD
Hooks (various number, according to
version) are fixed to the floor for easy
securing load.
Fiorino Cargo version fig. 90;
Fiorino Combi version fig. 91;
Qubo version fig. 92.
90 F0T0057
91 F0T0058
92 F0T0418
