FIBOCOM L860-GL Series Hardware Guide Page 47 of 60

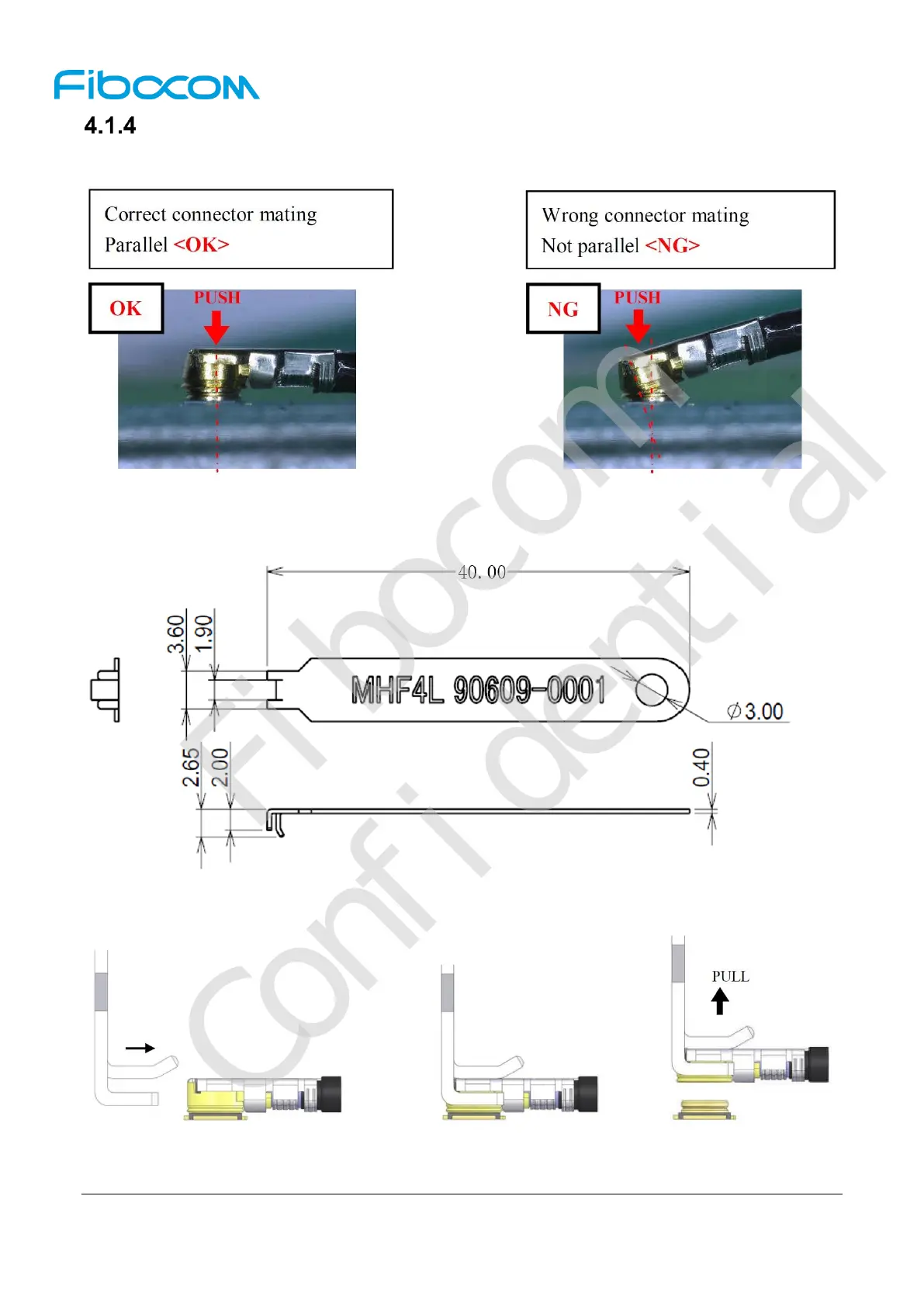

RF Connector Assembly
Mate RF connector parallel refer Figure 4-5, do not slant mate with strong force.
Figure 4-5 Mate RF connector
To avoid damage in RF connector unmating, it is recommended using pulling JIG as Figure 4-6, and the
pulling JIG must be lifted up vertically to PCB surface (see Figure 4-7 and 4-8).
Figure 4-6 Pulling JIG
Figure 4-7 Lift up pulling JIG
