Fibocom L860-GL-16 User Manual

Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
FIBOCOM L860-GL Series Hardware Guide Page 57 of 60

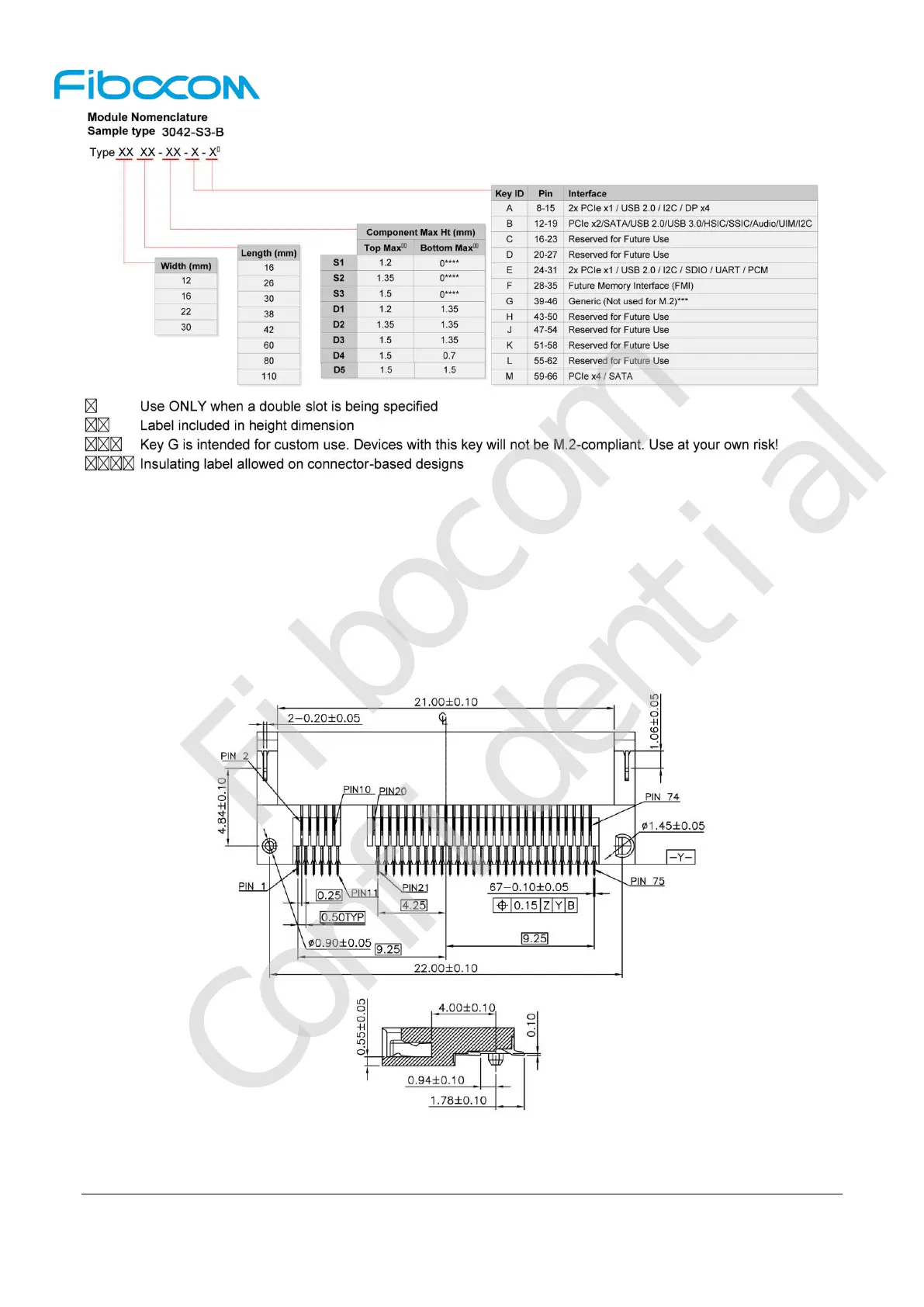

Figure 6-3 M.2 interface model
6.4 M.2 Connector
L860 module connects with host by M.2 connector which is built in host. The recommended part number
is APCI0026-P001A manufactured by LOTES Corporation, and the dimension is shown in Figure 6-4. The
package of connector, please refer to the specification.
Figure 6-4 M.2 dimension of structure
Fibocom
Confidential
