Fidelity Electronics 19eA - Connection Points

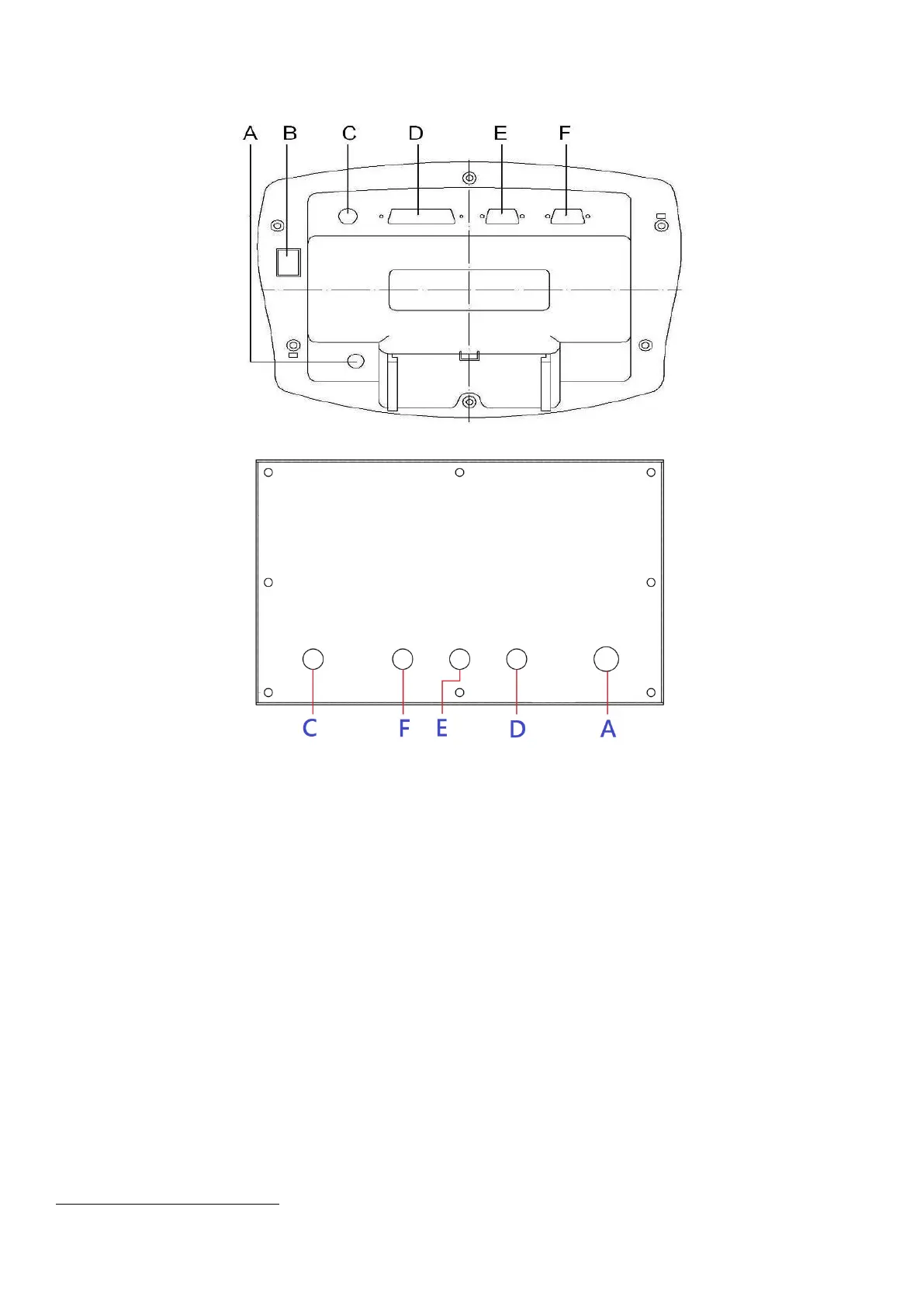

3.2 Connection Points
19eA
19eS
A. DC Jack Input for Indicator
External power adaptor (DC9 ~ 12V) is plugged in here. Do not plug in any other power adaptor than the one which
comes with this instrument.
B. Reserved
C. Load Cell Connector (7-Pin)
• 19eA: - Signal wires from load cell (or junction box) are connected here.
• 19eS: - Thread though signal cable from load cell (or junction box) here.
D. Reserved
E. Comport 2
8
• 19eA: - Comport 2
• 19eS: - Thread through cable of Comport 2
F. Comport 1
9
• 19eA: - Comport 1
• 19eS: - Thread through cable of Comport 1
8
Settings of comport #2 is done through F17.
9
Settings of comport #1 is done through F16.
