Quadnet Control Panel Engineering and Commissioning Manual
Control Panel Disassembly
The panel is normally supplied disassembled to make first fix easier. If the panel is already assembled it
must be disassembled in order to fix the backbox to the wall.
The front left hand door (CIE door) which houses the panel controls must be opened and the ribbon cables
unplugged from the main backplane.
Remove the collar / flange assembly complete with doors. Loosen the 4 screws in the keyhole slots (2 per
side). Remove the retaining screws (2) one at the top and one at the bottom. Lift off the collar / flange
assembly complete with doors and set aside.

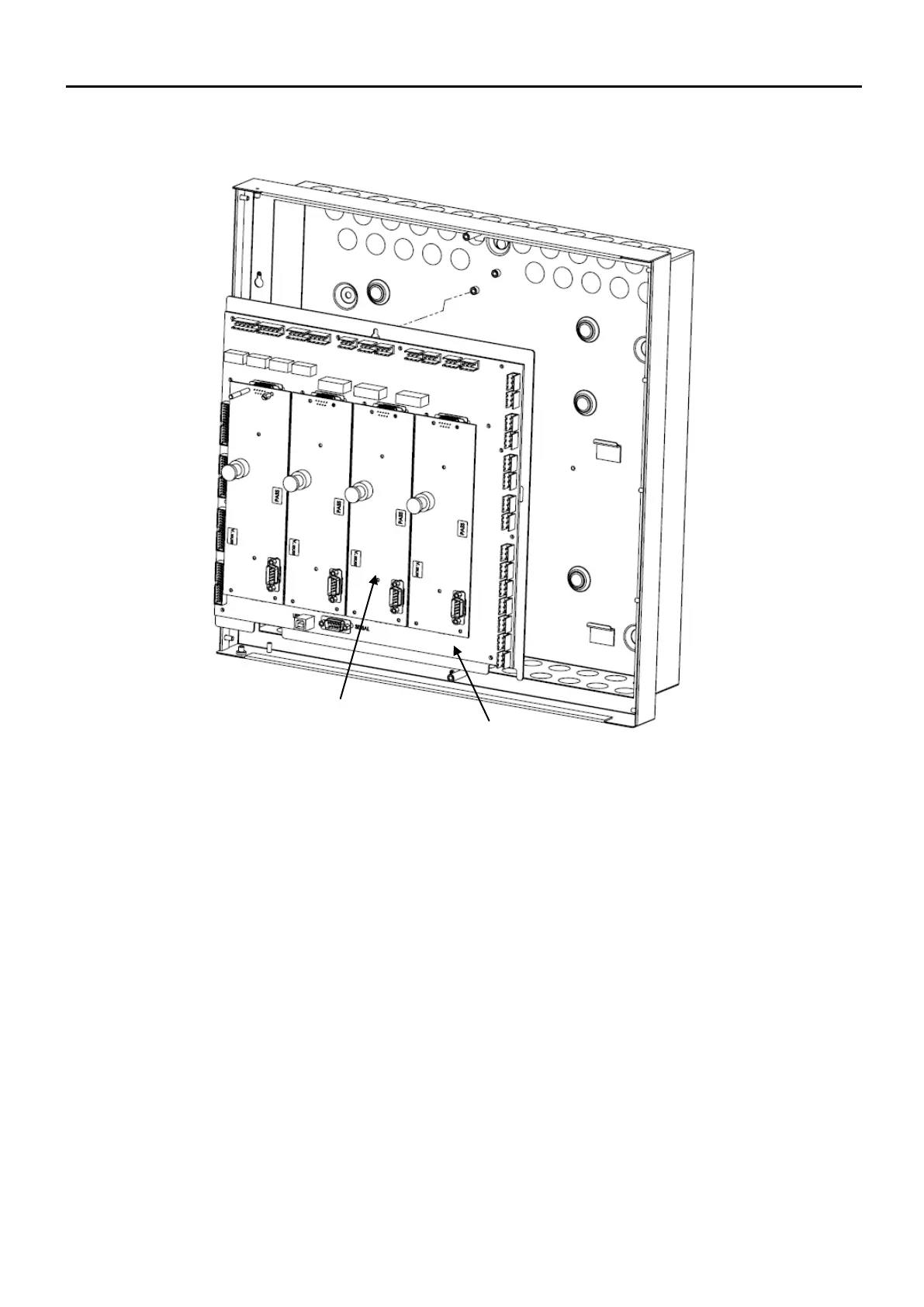

The backplane is mounted on a chassis which is fixed into the box by 1 screw at the top. There are two
metal retainers at the bottom.
The screw must be loosened then the chassis plate can be lifted up and out of the box.
