Fimap MXR - Page 19

4-19

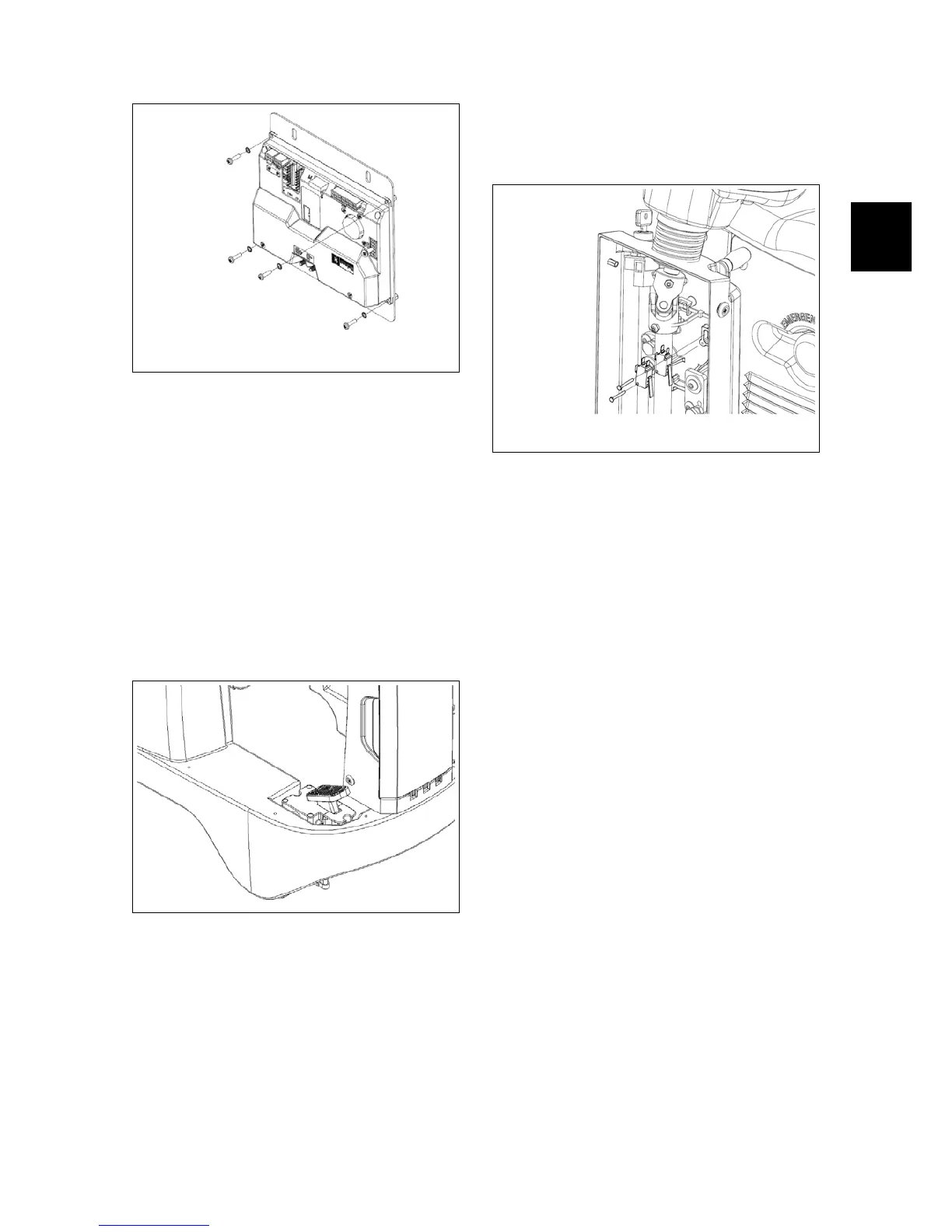

4.1.4 Traction Pedal
• Put the machine in safe conditions.
• Remove the screws to remove the
footrest.
• Release the footswitch connector
and unscrew the two screws holding
the pre-assembly pedal.
• Remove the pedal.
4.1.5 Microswitch
• Put the machine in safe conditions.
• Remove the screws that secure the
front carter to the steering column.
• Disconnect the wires connected to
the microswitch.
• To remove the microswitch, unscrew
the two screws and remove the de-
vice.
4.1.6 Dead Man Switch (Seat
microswitch)
• Put the machine in safe conditions.
• Unscrew the screws to remove the
electrical system cover (see fig. 4.5.1-56).
• Unscrew the lower screws that fix
the seat (see fig. 4.1.6-8).
• Unscrew the rear screws that fix the
seat (see fig. 4.1.6-9).
• Remove the seat from the machine
(see fig. 4.1.6-10).
• Remove the switch connecting
joints.
• Remove the dead man Switch.
