5-40
pressed and a potentiometer to adjust
the intensity of the traction speed.
5.3.7-73 5.3.7-74
5.3.8 Batteries and battery
charger
The machine is available with the op-
tional battery charger. To get access to
the battery charger and the battery com-
partment is enough to actuate the recov-
ery tank release hook, positioned behind
the seat. On the batteries there is a loop
wire with 80 Ampere general protection
fuse.
5.3.8-75 5.3.8-76
5.4 Adjustments

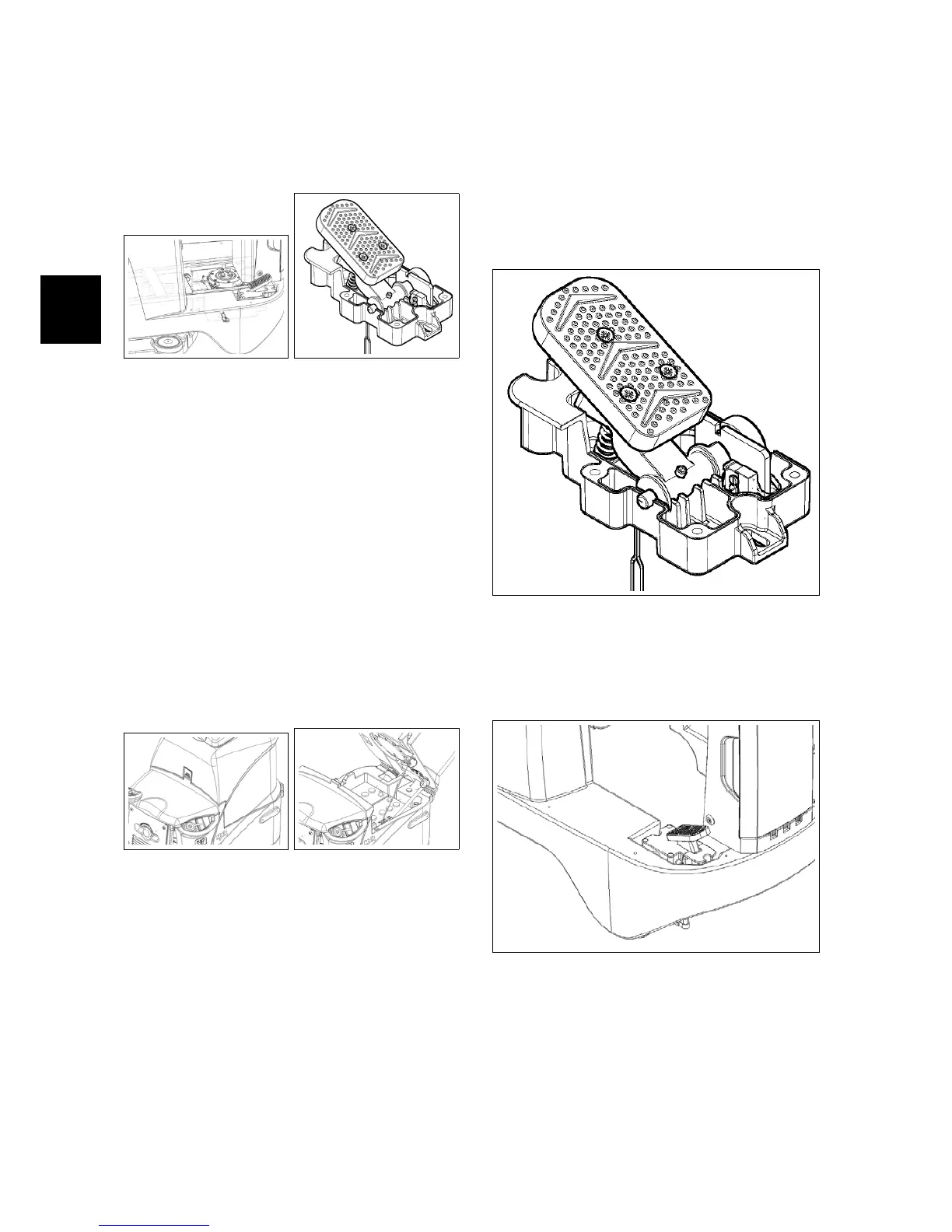

5.4.1 Traction Pedal
The microswitch and the potentiometer
inside the traction pedal are properly ad-
justed during assembly of the pedal.
If it is necessary to calibrate the po-
tentiometer remove the platform, release
the control connector and pull the pedal
out by unscrewing the two screws.
Procedure:
• Remove the plastic cap and loosen
the adjustment dowel.
• Rotate the pedal lateral spindle
clockwise, until it is in the zero posi-
tion.
