7-57
Chapter 7
Drying System

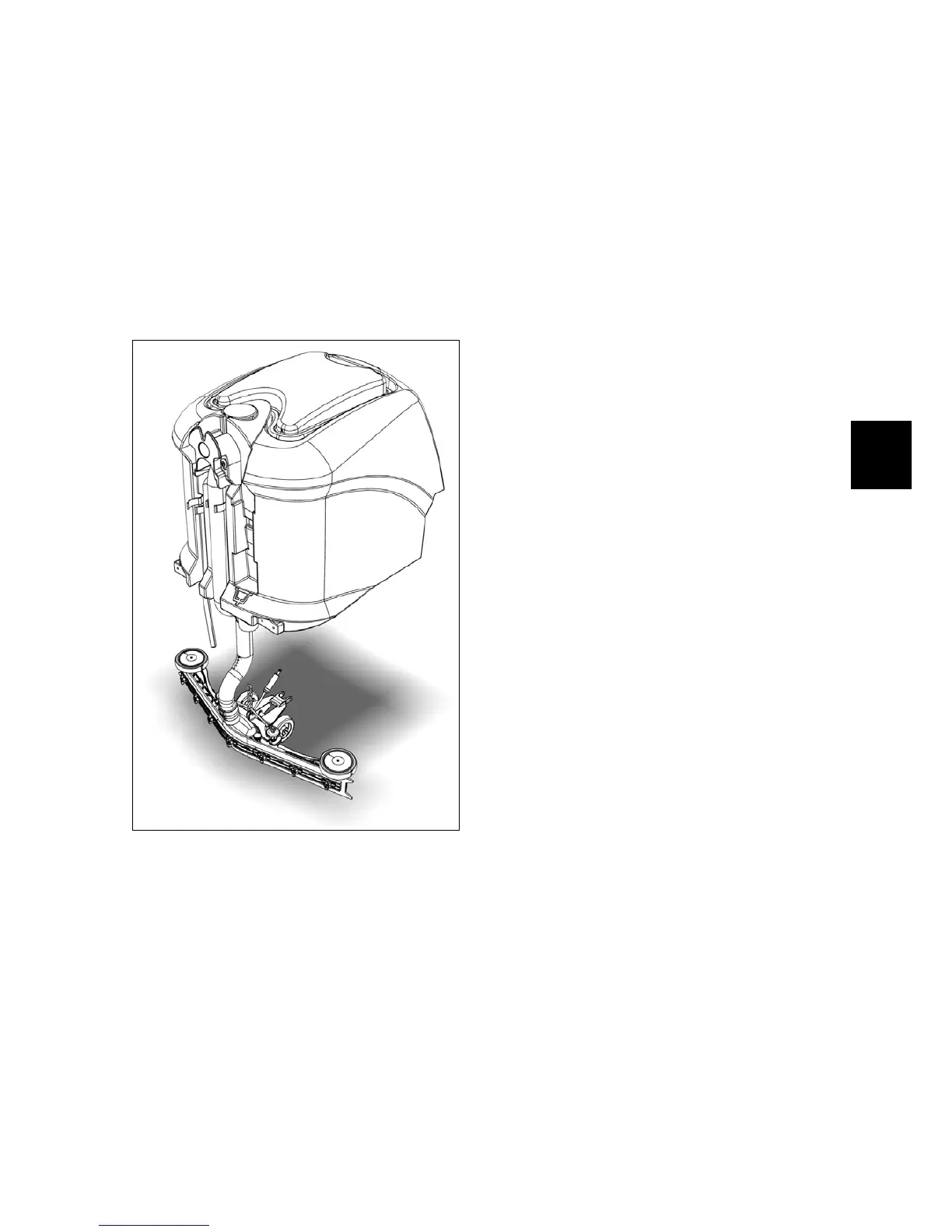

7.1 Structure
1. Squeegee
2. Squeegee Support
3. Vacuum Hose
4. Recovery Tank
5. Filter and Floating
6. Vacuum Motor
7. Drain Hose
7.2 Description
The machine dries the floor using an in-
tegrated Drying System. After the wash-
ing, the solution used with the mechan-
ical action of the brush to remove the
dirt, is collected by a system which vac-
uum it out from the floor. The system
is basically made by a vacuum motor
which produces an underpressure in the
system. This underpressure causes an
air flow which flows in the whole vac-
uum circuit. The air that flows in the
squeegee (when it is lowered on the floor)
allows it to collect the water on the floor
mixing it with the water and, via the vac-
uum system, is brought to the recov-
ery tank. In the recovery tank the wa-
ter mixed with the dirt stops and the
air keep flowing throughout the circuit
reaching the vacuum motor and being
discharged in the environment via the
exhaust manifold.
57
