9-69
Chapter 9
Cleaning Solution Supply System

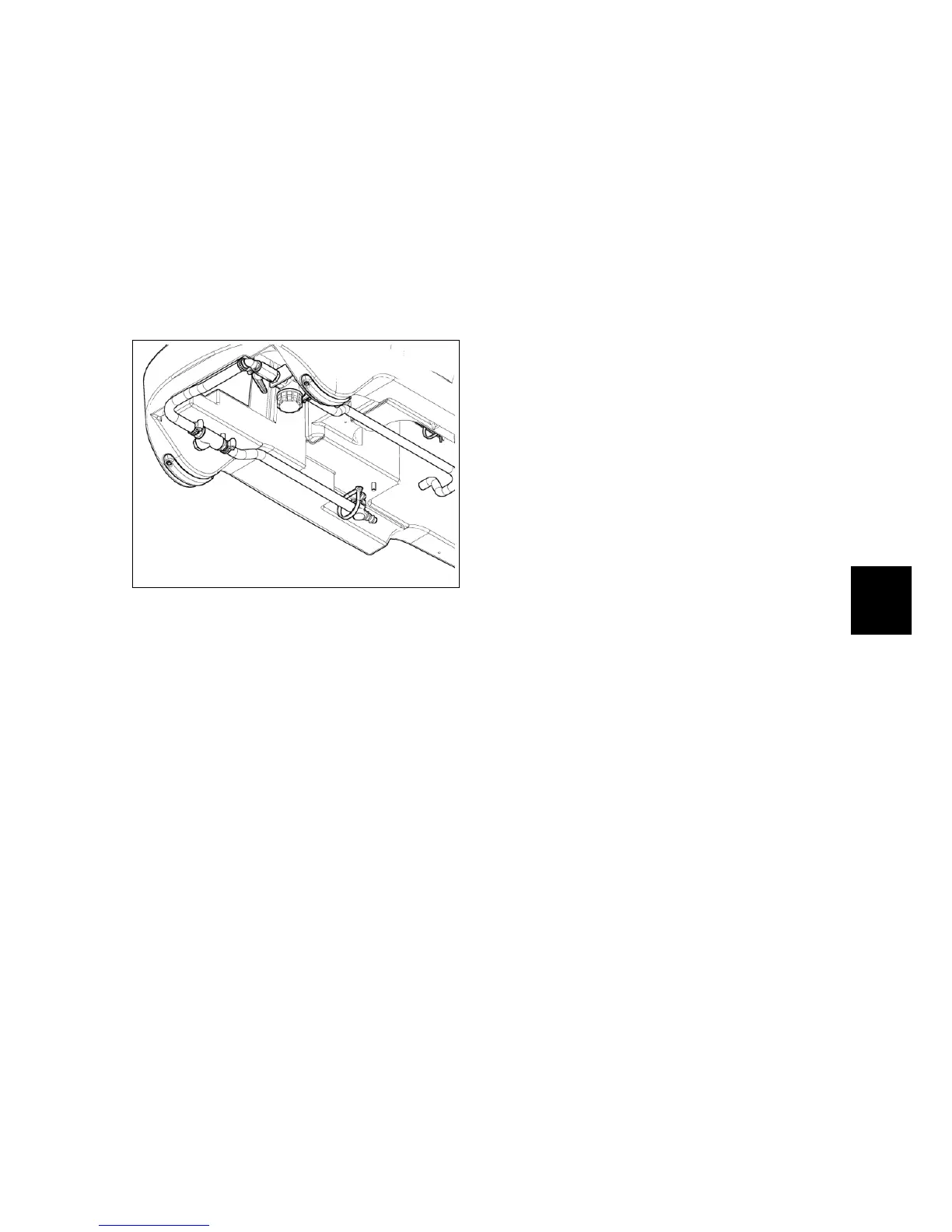

9.1 Structure
1. Solution Tank
2. Hoses
3. Water Valve
4. Solution Filter
5. Solenoid Valve
6. Distributor
9.2 Description:
The Cleaning Solution Supply System
is made by a tank commonly called
solution tank or clean water tank. In
this tank the clean water is mixed with
the detergent to create the cleaning
solution that the machine will use to
clean. The solution is then canalized to
the filter and the water valve. The filter
is used to stop debris that could stuck
the hose system and compromise the
proper functioning of the system, the
water valve is used to adjust the solution
that will fall on the floor in order to have
the correct amount of solution required
for washing. The water valve is placed
upstream of the filter to allow the filter
cleaning even with fully or partially full
solution tank. Once passed through the
water valve the solution arrive to the
solenoid valve that blocks the delivery
when the brush is not working and allow
the flow while brush works. The end
of the solution path is the distributor
that canalizes the flow in the middle of
the brush. The solution tank is also
equipped with a drain hose to empty it
in case of need.
